Description
The Model 9123 is a low proile single-ended shear beam type load cell. The 9123 is made from stainless steel. This load cell is suitable for small and medium platform scales, overhead track scales, hopper scales, and process weighing applications.
Reliable sealing is ensured by the proprietary TRANSEAL potting compound and additional mechanical protection of the strain gage area.

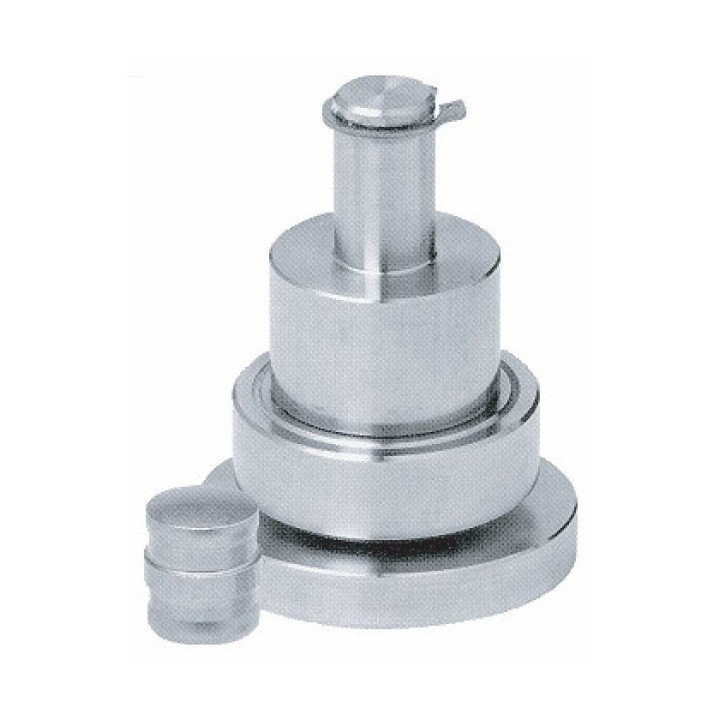

Ease of installation is made possible through the use of a partially threaded hole to accept levelling feet, load buttons, or loading cables.
APPLICATIONS:
- Low proile platforms
- Pallet truck weighing
- Tank and silo weighing
Specification
| Rated load |
500 kg
1000 kg
2000 kg
5000 kg
|
| Combined error |
± 0,02% of rated output
± 0,05 % of rated output
|
| Overload, safe |
150% of RL
|
| Resistance |
input: 350 ± 3,5 Ω
output: 350 ± 3,5 Ω
|
| Rated output |
3 mV/V
|
| Protection class |
IP 67
|
| Sensor material |
stainless steel
|
| Operating temperature |
-40...+80°C
|
Files
| Data sheet | |

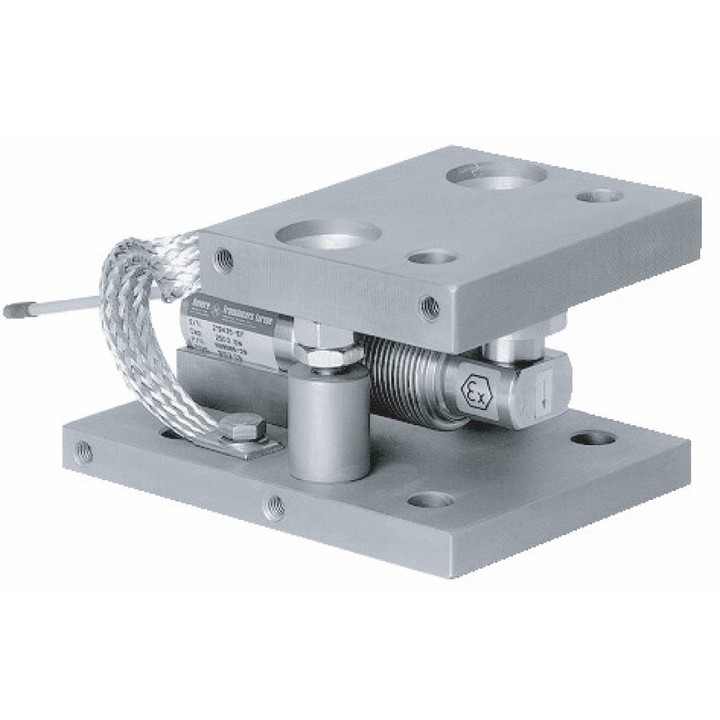

| Mounting assembly | |
| Load Cells - Product Overview |
