Description
The Model 5123 is a low proile single-ended shear beam type load cell made from nickel-plated tool steel. This product is suitable for small and medium platform scales, overhead track scales, hopper scales, and process weighing applications.

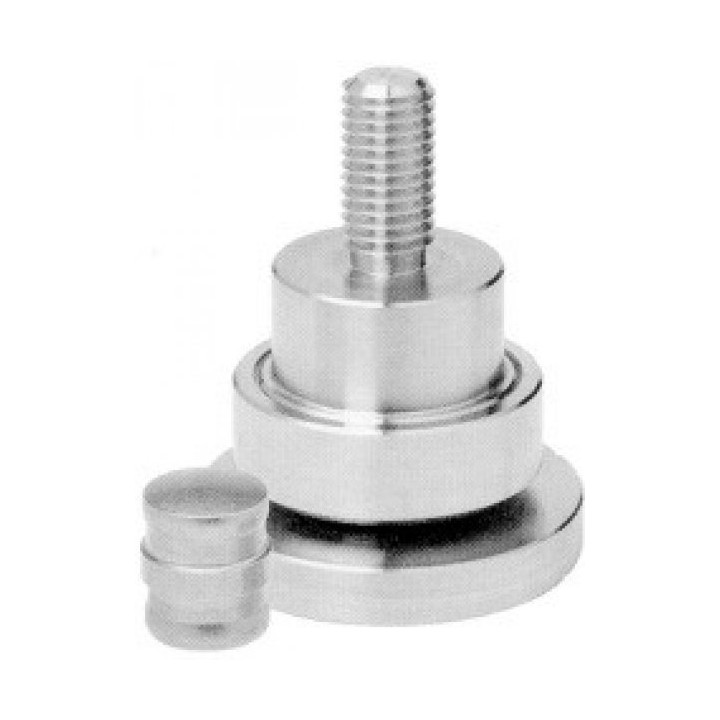

Reliable sealing is ensured by the proprietary TRANSEAL potting compound and additional mechanical protection of the strain gage area. Ease of installation is made possible through the use of a partially threaded hole to accept levelling feet, load buttons, or loading cables.
APPLICATIONS:
- Floor scales
- Tank weighing
- Bin and hopper weighing
Specification
| Rated load |
500 kg
1000 kg
2000 kg
5000 kg
|
| Combined error |
± 0,02% of rated output
± 0,05 % of rated output
± 0,025% of rated output
|
| Overload, safe |
150% of RL
|
| Resistance |
input: 350 ± 7 Ω
output: 352 ± 3 Ω
|
| Rated output |
3 mV/V
|
| Sensor material |
nickel plated steel
|
| Protection class |
IP 67
|
| Operating temperature |
-18...+65°C
|
Files
| Data sheet | |

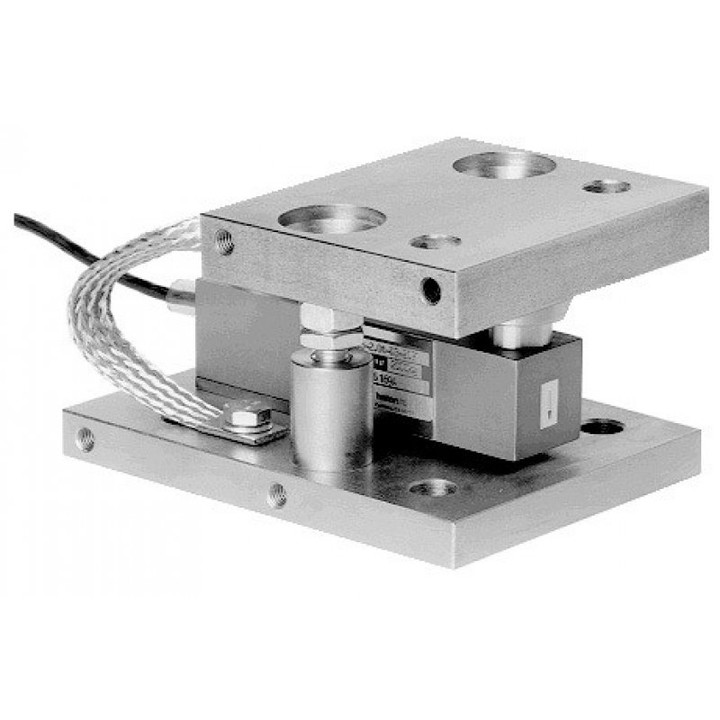

| Mounting assembly | |
| Load Cells - Product Overview |
