CSP-M

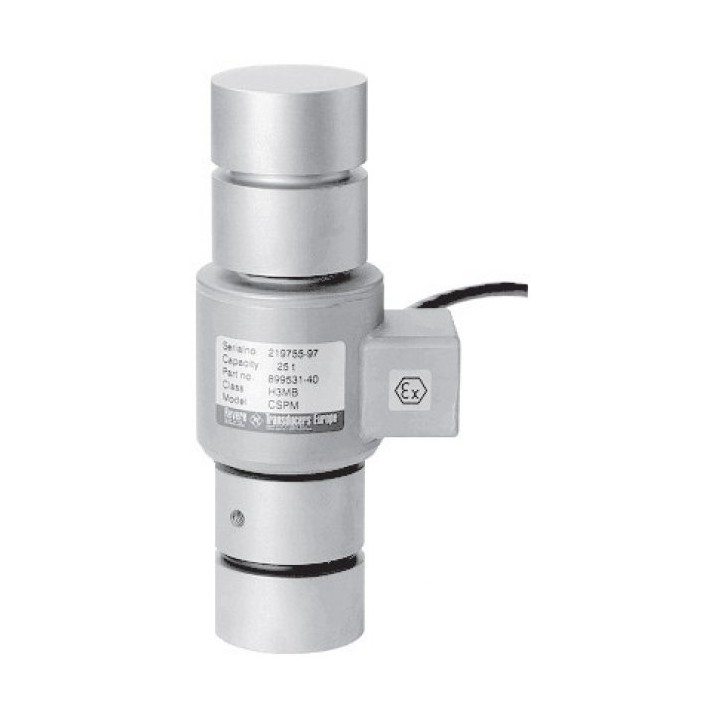

Load Cell CSP-M
Code: CSP-M
  • capacities: 10...100 t
  • low profile, multi-column stainless steel construction
  • hermetically sealed, IP66, IP68, and IP69K
  • certiied to OIML R-60, 4000d and NTEP class IIIL 10000 divisions
  • thread and OIML approval
  • built-in surge protection tubes (GDTs)
  • current calibration output (SC version) ensures easy and accurate parallel connection of multiple load cells
  • optional: ATEX and FM certiied versions are available for use in potentially explosive atmospheres; multi-interval and multiple range versions
Choose a product
Ask about product
+48 58 762 07 77
Description

The Model CSP-M is a multi-column, low proile, stainless steel compression load cell. The unique four column design offers excellent insensitivity to eccentric loads while maintaining accuracy. Model CSP-M offers metric capacity, thread and OIML approval.

This product is suitable for use in road and rail weighbridges and process weighing applications. The fully leak-tested welded construction, advanced cable entry, and built-in surge protection tubes ensure that this product can be used successfully in demanding environments.

This product meets the stringent Weights and Measures requirements throughout Europe.

APPLICATIONS:

  • Truck and rail weighbridges
  • Silo and hopper weighing
  • Process weighing

Specification
Rated load
10 t
25 t
40 t
60 t
100 t
Combined error
± 0,02% of rated output
± 0,05 % of rated output
Overload, safe
150% of RL
Resistance
input: 450 ± 4,5 Ω
output: 480 ± 4,8 Ω
Rated output
2 mV/V
Sensor material
stainless steel
Protection class
IP 66
IP 68
Operating temperature
-40...+80°C
Files
Data sheet

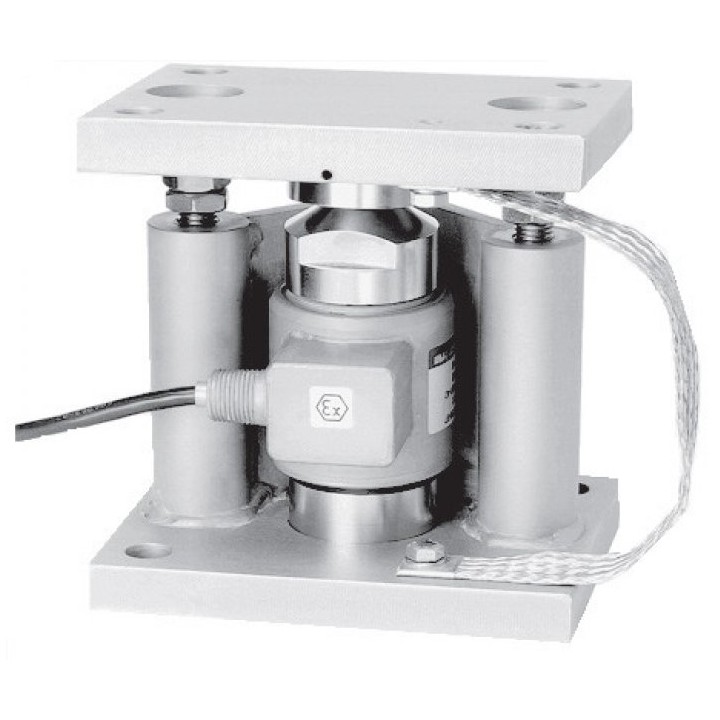

Mounting assembly
Load Cells - Product Overview
