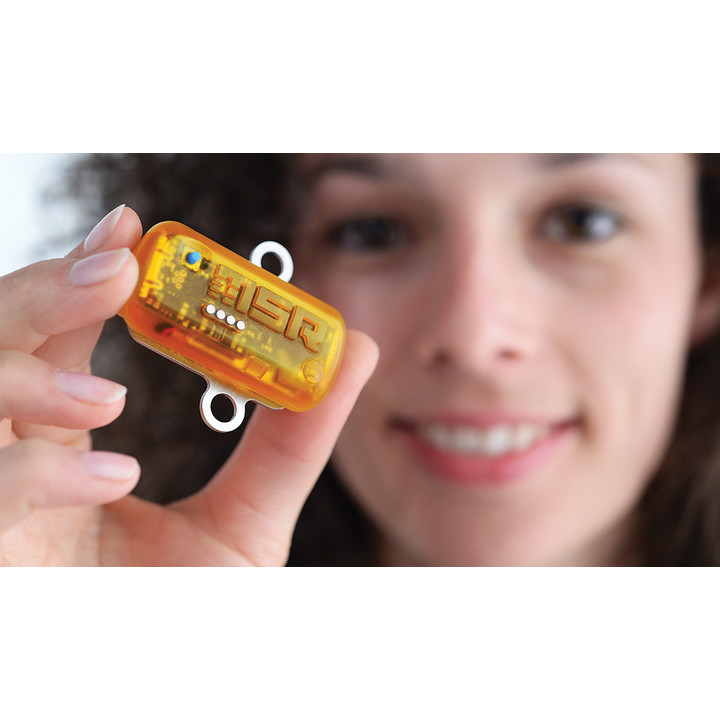

MSR 175

The MSR 175 shock data logger uses high-resolution sensors to continuously record what happens to your goods during transportation. The logger data can then be analysed very accurately – be it in order to ascertain damage or to improve transport packaging – using the «MSR ShockViewer» software.
The two 3-axis acceleration sensors (±15 g and ±200 g) integrated in the MSR 175 record shocks at a measurement frequency of up to 6400/s. The installed memory of the logger is capable of storing over 2 million measured values, which is sufficient for more than 1,000 shocks. In addition, the MSR 175 measures and records temperature profiles from -20° to +65 °C. Additionally, type variants of this data logger are available with internal humidity, pressure and light sensors.
Easy-to-use PC software: The software package for the MSR 175 includes 3 programs: MSR 175 Dashboard, MSR ReportGenerator and MSR ShockViewer. The MSR Dashboard allows you to configure the loggers with just a few mouse clicks. The data recorded can be quickly transferred to a computer via the USB port. A single click on the MSR ReportGenerator is sufficient to call up a compact report. For a detailed measured data analysis, the MSR ShockViewer, which is integrated in the MSR175 software package as a free basic version, is at your disposal.
