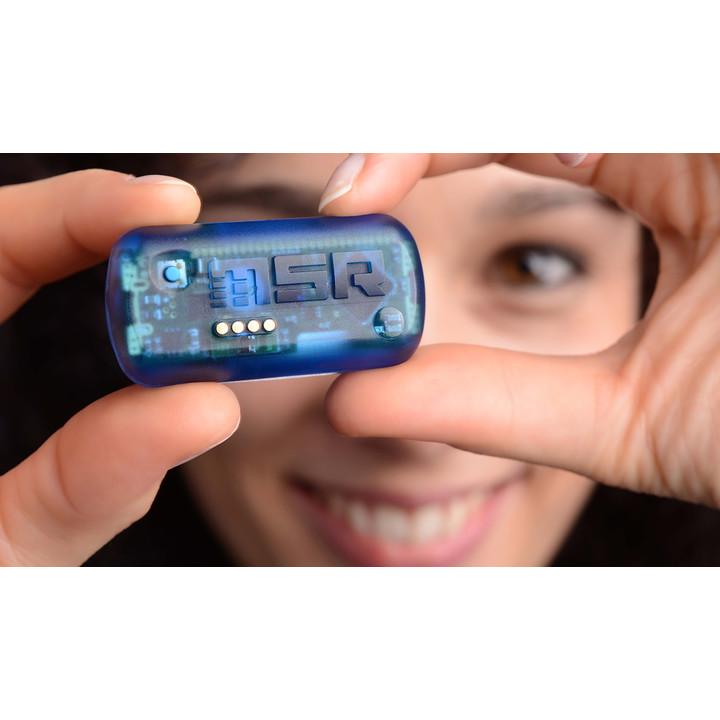

This thumb-sized MSR 145 data logger is capable of simultaneously measuring and recording a variety of measures such as temperature, humidity, pressure, 3-axis acceleration and light.
With the MSR 145 you can choose between different housings, battery capacities, sensors and connections. Freely selectable measuring rates of up to 50 measurements per second guarantee complete documentation of fast processes. Depending on the measurement rate setting and the choice of battery, the MSR 145 can record data for up to two years.
All measured values can be quickly transferred to a computer via USB interface for data analysis. The user-friendly MSR PC software for data acquisition and analysis is included free of charge with your MSR 145 data logger.
MSR 145 data loggers are «Air Cargo Approved» and thus comply with air cargo security requirements.
| Probe parameters |
temperature
humidity
air / liquid pressure
light
3-axis-acceleration
|
| Input type |
current (mA)
voltage (V)
|
| Power supply |
LiPo battery, 230 mAh
LiPo battery, 1000 mAh
|
| Memory capacity |
over 1 million measurement values
over 1 billion with microSD card
|
| Communication Interface |
USB
|
| Operating temperature |
-20…+65°C
|
| Protection class |
IP 60
IP 67
|
| Case material |
silicon
polycarbonate
|
| Case dimensions |
39 x 23 x 72 mm
20 x 14 x 62 mm
27 x 16 x 53 mm
|
| Data sheet | |
| Manual |
