MSR 85
The robust MSR 85 data logger ensures reliable temperature monitoring for products transported or stored with dry ice. It is ideal for sensitive goods such as pharmaceuticals, vaccines, biological samples, tissues or enzymes that require a secure cold chain down to -85°C.

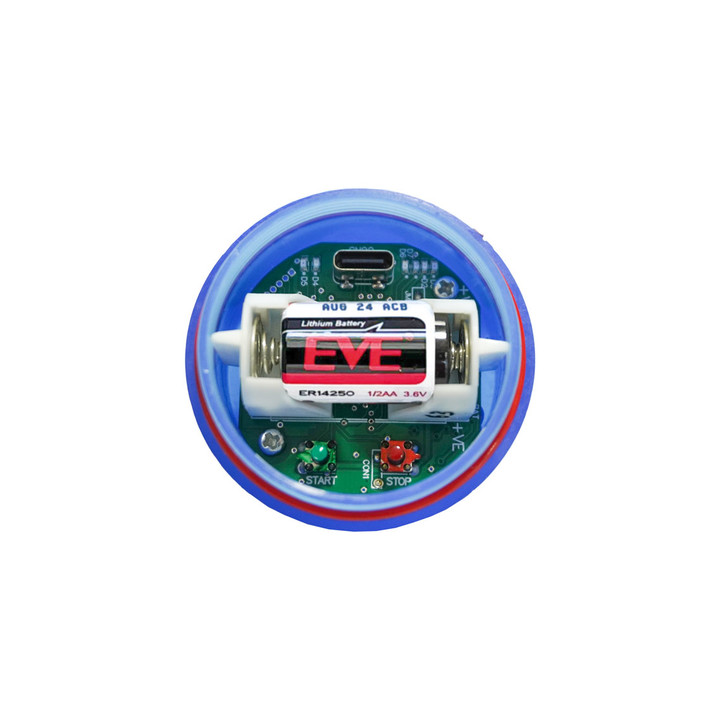

Thanks to its replaceable battery and long operating life, the MSR 85 can be used multiple times – a cost-effective and sustainable solution for cold chain monitoring. Set-up is remarkably simple: Before use, configure all required parameters such as alarm limits, measurement interval or time zone using the Configuration Tool. Recording is then started conveniently with the push of a button.
After transport, recipients can immediately see via the LED whether threshold values have been exceeded. Once recording is stopped by pressing the button, and the logger is connected to a PC via USB, the MSR 85 automatically generates tamper-proof PDF and CSV reports with all relevant data.
| Power supply |
3.6V 1/2AA lithium battery
|
| Memory capacity |
32 000 measurements
|
| Probe parameters |
Pt1000
temperature
|
| Operating temperature |
-85...+70°C
|
| Communication Interface |
USB
|
| Protection class |
IP 67
|
| Case material |
ABS
polycarbonate
|
| Mounting |
panel
|
| Case dimensions |
Ø50 x 45 mm
|
| Data sheet | |
| Manual |
