MSR 145WD

Wireless Data Logger with Bluetooth MSR145WD
Code: MSR 145WD
  • wireless data logger (Bluetooth Low Energy) for monitoring temperature, humidity, fluid pressure, air pressure, acceleration, strain gauges and more

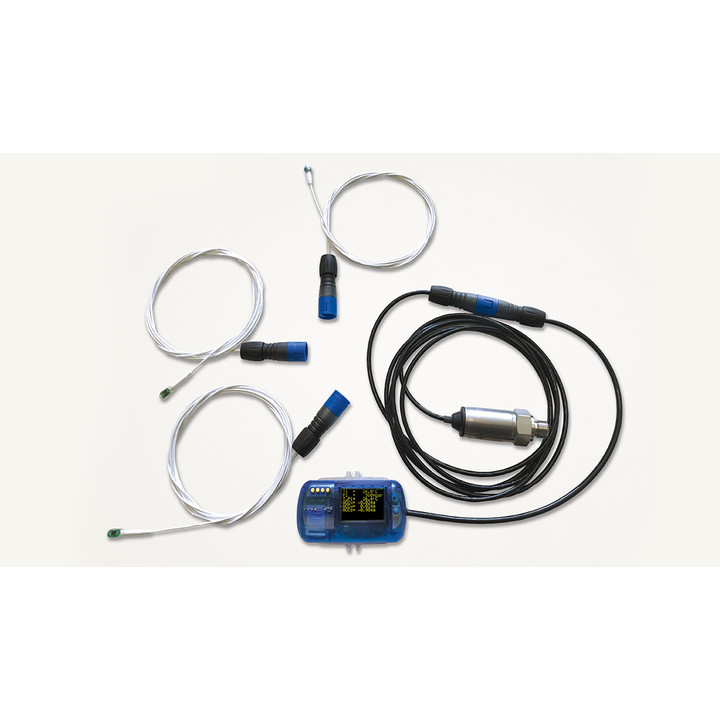

  • internal sensors and up to five external sensors
  • flexConnector for interchangeable FlexSensors
  • more than 1 million measured values storage capacity in the internal memory
  • free MSR PC software: MSR Setup, Reader, Viewer and Online software
  • free MSR DataLogger App for mobile devices (from Android 4.4+, iPhone 4S+, iPad 3+)
  • MSR SmartCloud: retrieve, analyse and export measured data online at any time; alarm message if limit value is exceeded
Availability:

on order

Request for quotation
Ask about product
+48 58 762 07 77
Description

The MSR 145WD wireless data logger, equipped with Bluetooth function, has a memory capacity of one million measured values. The versatile mini-logger can be used to wirelessly monitor measurement data, quickly read measured values, and transfer the data to the MSR SmartCloud as needed.
The use of Bluetooth Low Energy (BLE) short-range radio technology is ideal when measurement data from hard-to-reach locations needs to be monitored over long periods of time. Measured values can be retrieved at any time using the MSR Data-Logger app on a smartphone. A base station allows you to quickly send data from multiple MSR 145WDs to the MSR SmartCloud via BLE/LAN.

The MSR SmartCloud allows you to view, manage and store measurement values online and to use alarm actions.

Specification
Power supply
LiPo battery, 900 mAh
LiPo battery, 230 mAh
Memory capacity
over 1 million measurement values
Probe parameters
temperature
humidity
air / liquid pressure
light
3-axis-acceleration
Display
OLED, 96 x 64 pikseli
Communication Interface
USB
Bluetooth
Operating temperature
-20…+65°C
Protection class
IP 60
IP 67
Case material
polycarbonate
Case dimensions
35 x 17 x 57 mm
35 x 25 x 57 mm
