MSR 385WD

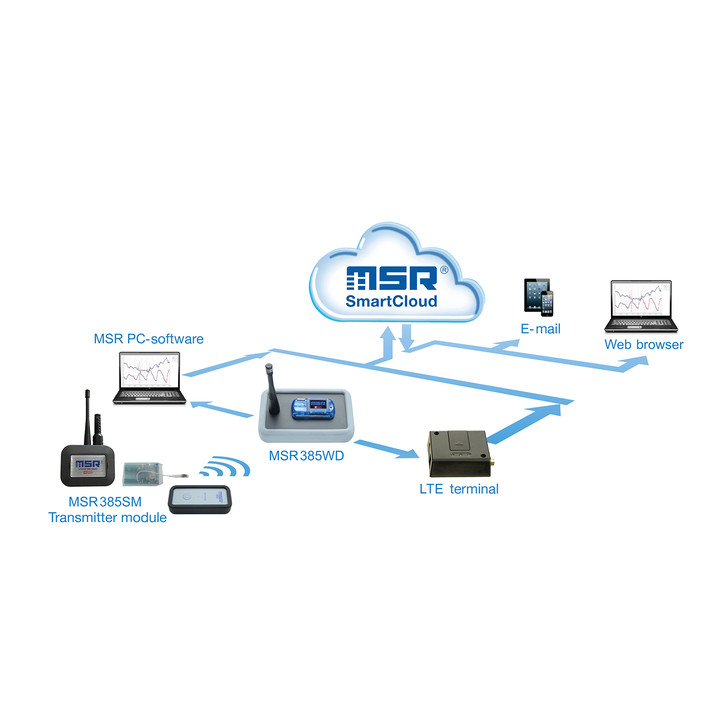

Permanently record temperature, humidity and pressure at various measuring points, in inaccessible locations, even at operating temperatures from -20°C to +125°C, and monitor them via the MSR SmartCloud: The MSR 385WD data logger, which is equipped with wireless sensors and which is available with a LTE terminal, offers these options.

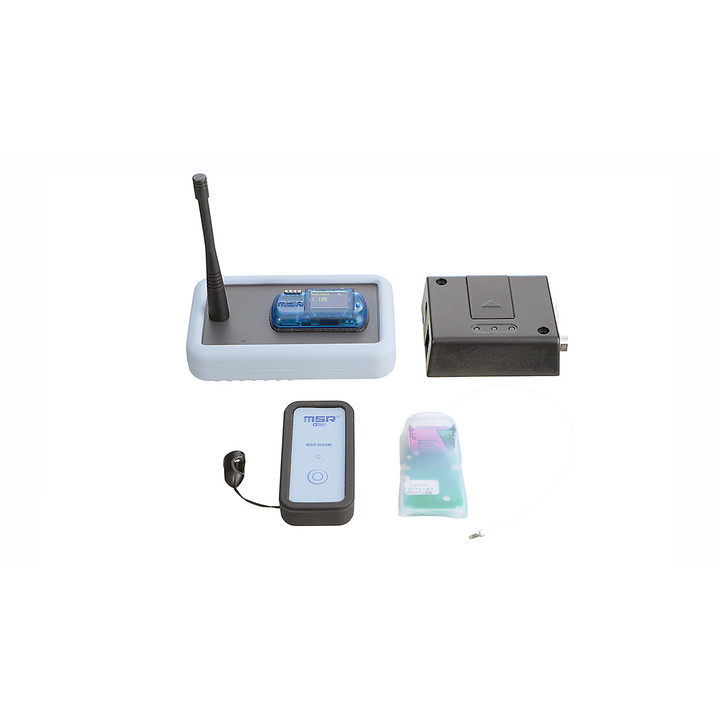

The centrepiece of the system is the MSR 385WD data logger, which is equipped with a memory capacity of more than one million measured values. The data logger has an integrated ISM band receiver module through which it receives and stores data from up to ten MSR 385SM transmitter modules. The transmitter modules record temperature profiles, humidity and pressure by means of sensors and send the measured values to the data logger. Depending on the frequency of the measurements and radio transmissions, the power supply to the transmitter modules is warranted for more than ten years.
