MSR 165
Ask about product:
Product query has been sent.
Thank you. We will respond as soon as possible.
The MSR 165 data logger, which is equipped with a high resolution 3-axis acceleration sensor (±15 g or ±200 g), supplies valuable measured data about shocks, jolts and vibrations. With its measurement frequency of 1600/s, high-capacity memory and low power requirements, the MSR 165 is ideal for applications in the fields of transportation monitoring, fault diagnoses and load tests.

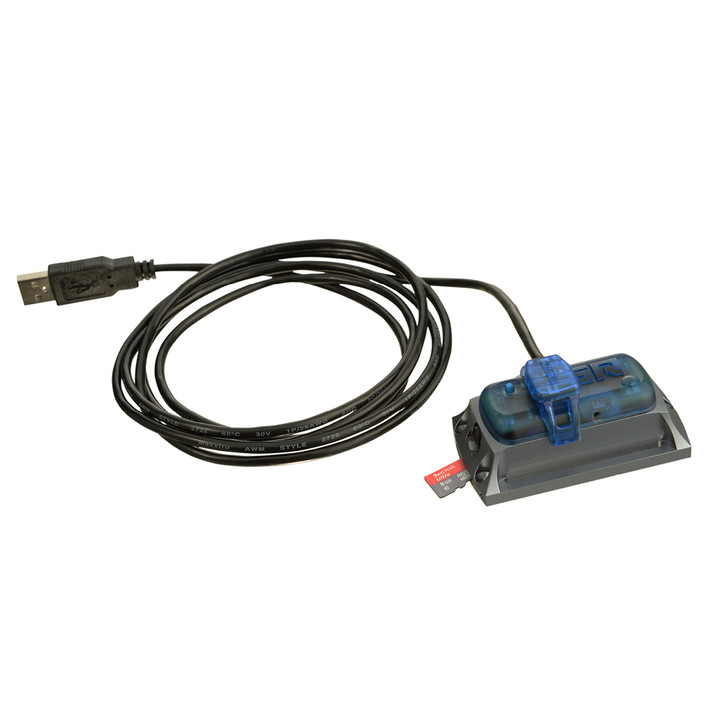

The memory capacity of over two million stored measured values is sufficient for recording 10,000+ shocks; it can be extended to more than 1 billion measured values by using a microSD card. The measured data can be quickly transferred to a computer via the USB port or microSD card. The MSR PC software allows you to efficiently record and process the measured data.

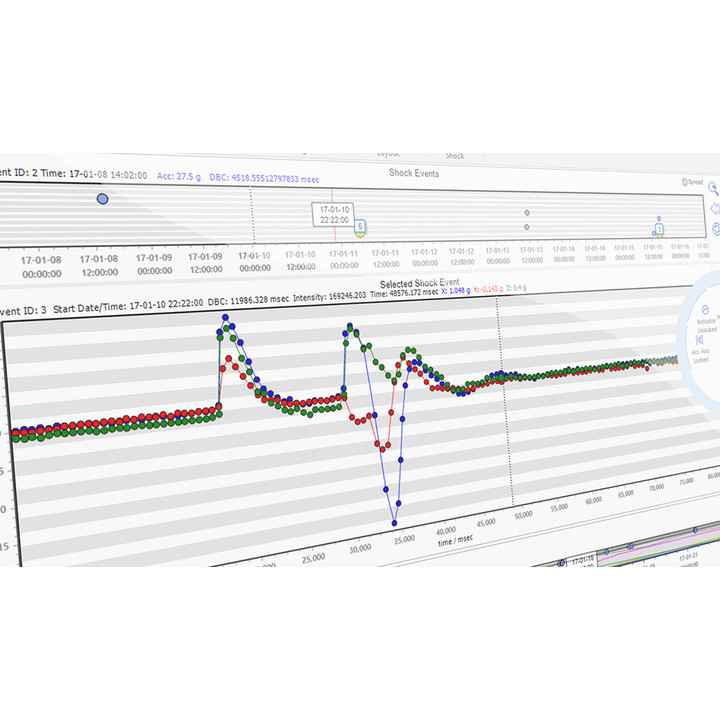

NEW: For extensive analysis and graphical representation of the data recorded in shock mode and to automatically create reports, the new MSR ShockViewer analysis software, which is specifically tailored to the requirements of transportation monitoring, is at your disposal.
| Power supply |
Li-SOCI2 battery, 7700 mAh
LiPo battery, 1000 mAh
|
| Memory capacity |
over 2 million measurement values
over 1 billion with microSD card
|
| Probe parameters |
temperature
humidity
air / liquid pressure
light
3-axis-acceleration
|
| Input type |
current (mA)
voltage (V)
|
| Communication Interface |
USB
|
| Operating temperature |
-20…+65°C
|
| Protection class |
IP 67
|
| Case material |
aluminium, anodized
polycarbonate
|
| Case dimensions |
39 x 23 x 72 mm
122 x 92 x 70 mm
|
| Data sheet | |
| Manual |
