LP-SHT-100
Code: LP-SHT-100

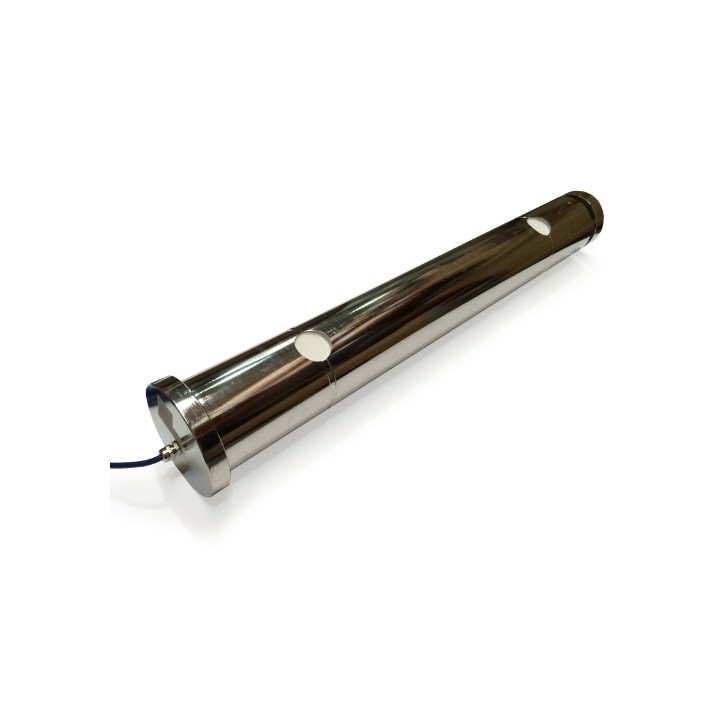

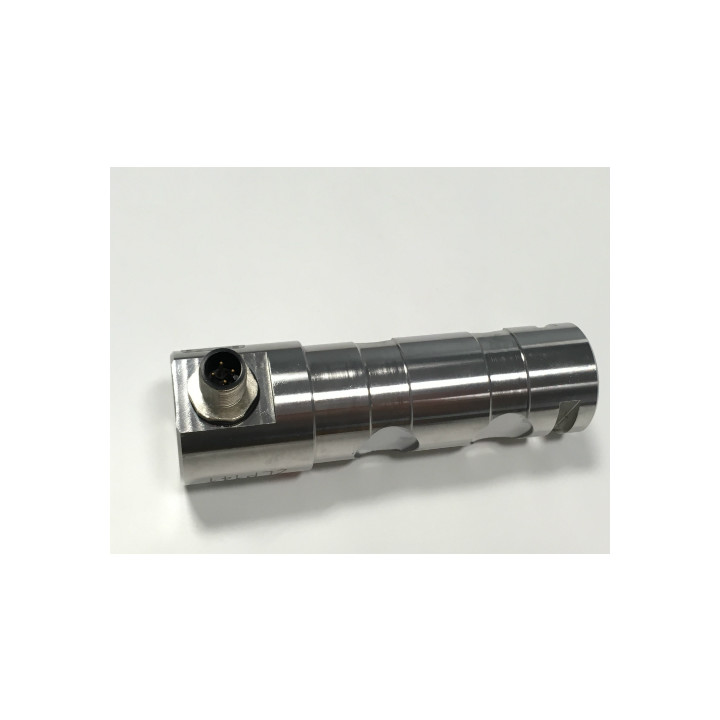

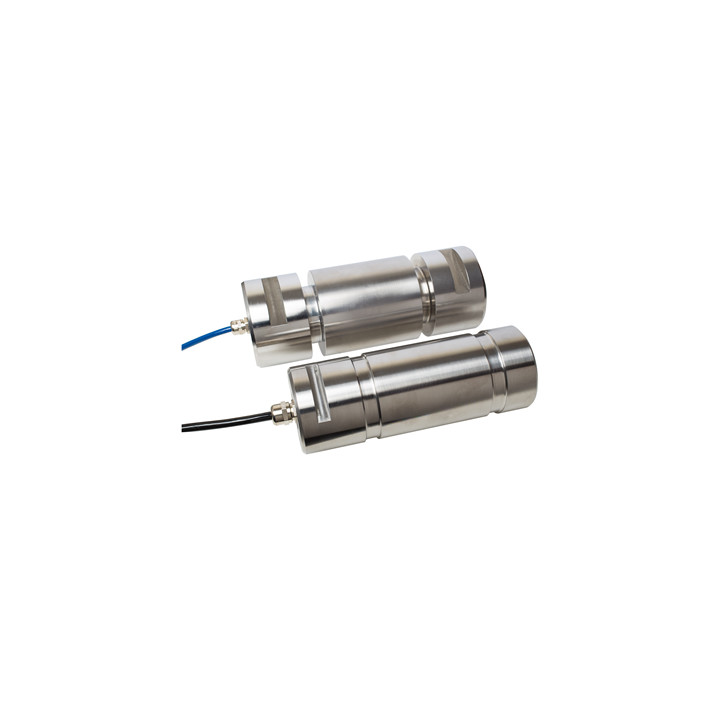

  • Strain gauged load pins
  • Custom manufactured to replace existing pins, normally without changes to the existing mechanical structure
  • Robust construction in high strength stainless steel, with optional material certificate to EN 10204 3.1B
  • Choice of locking/retaining options to suit your application
  • Fast delivery with CAD drawings supplied for approval prior to manufacturing
  • Externally gauged for IP66 or internally gauged for IP68 protection
  • Operating temperature from -20˚C to +90˚C

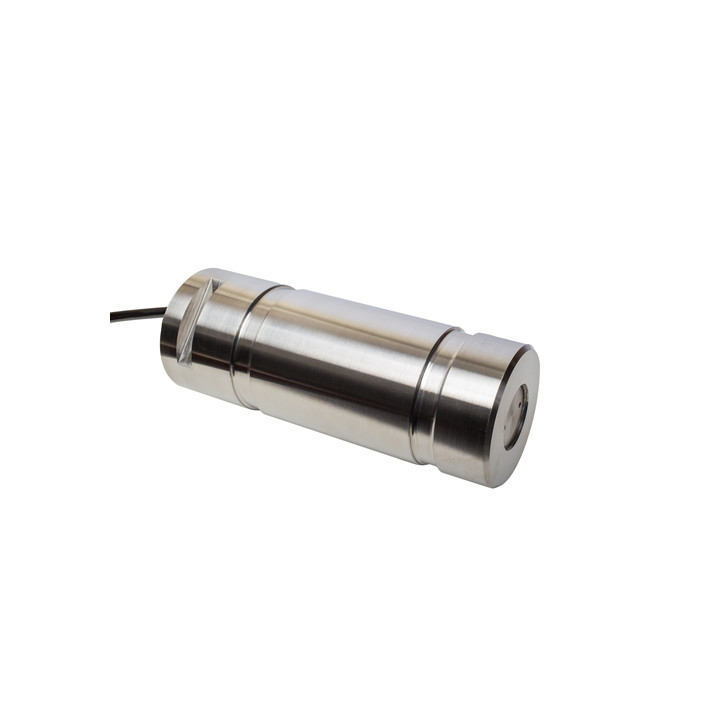

  • High temperature option for use up to 180˚C (LP-SHT version)
  • Optional integrated 4-20mA amplifier for analogue outputs
  • Single or dual (redundant) output options available
  • ATEX option
  • SIL 2 / SIL 3 safety rating options



Availability:

on order

Request for quotation
Ask about product
+48 58 762 07 77
Description

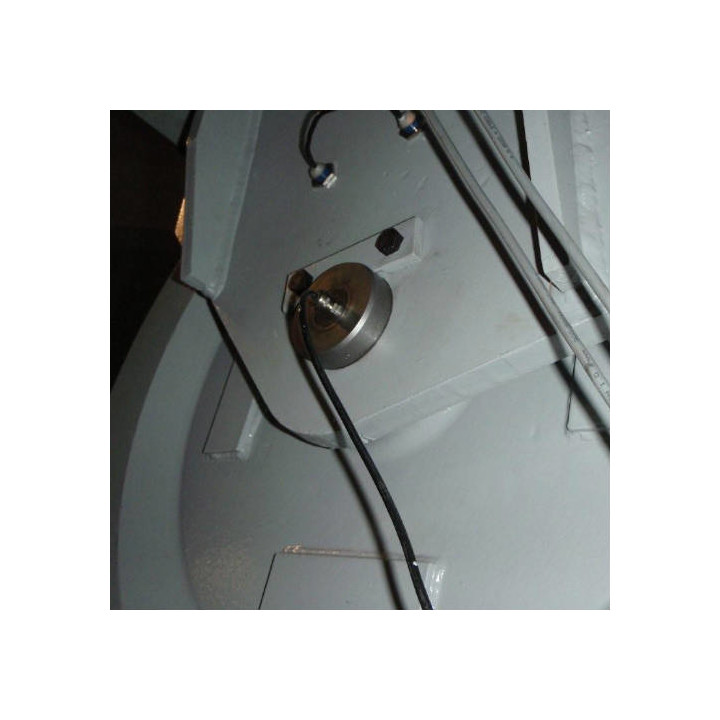

Strain gauged load pins can easily replace an existing clevis, pivot pin or solid shafts in machinery or equipment to measure the load at that point.

Typical applications:

  • Overload protection devices
  • Load monitoring and safety systems

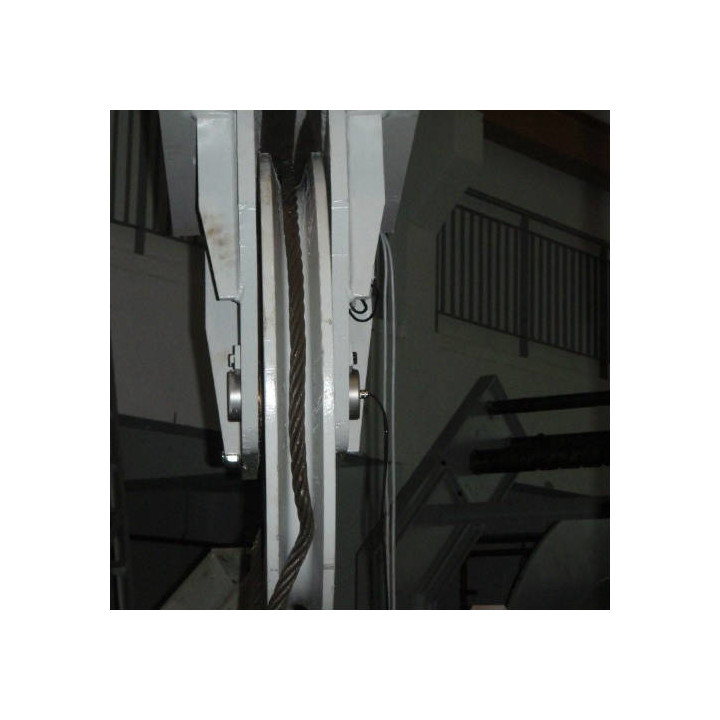

  • Cranes, hoists and other lifting equipment
  • Pivots and load shackles
  • Load limiting systems, e.g. in conveyors

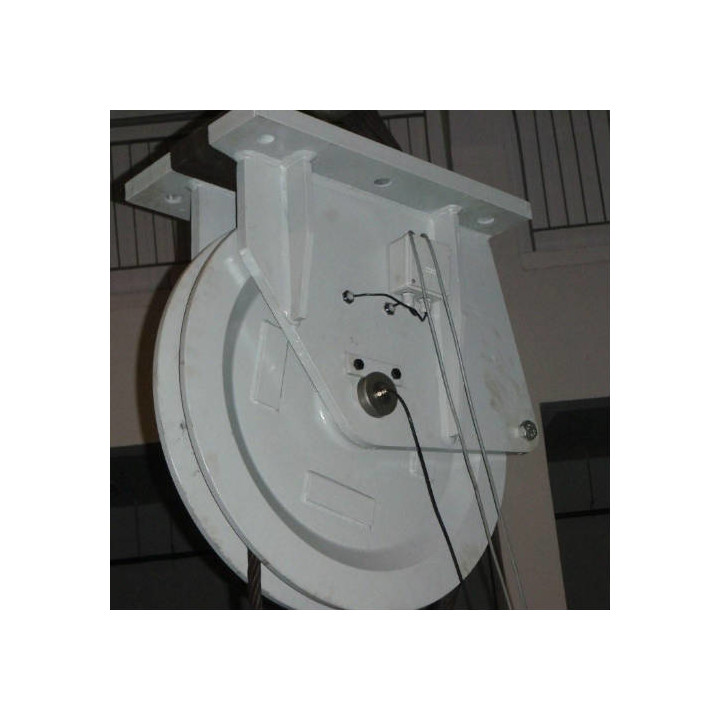

  • On-board weighing in trucks, trailers and mobile machinery
  • Marine applications, e.g. mooring lines and winches
  • High temperature weighing and load monitoring systems
  • Load monitoring and overload protection in hazardous areas (ATEX)

Specification
Combined error
± 0,5% of rated output
Overload, safe
150% of RL
Resistance
input: 400 ± 30 Ω
output: 352 ± 5 Ω
Rated output
1–2 mV/V ±0,25%
Protection class
IP 66
IP 68
Operating temperature
-20...+90°C
Sensor material
stainless steel
