RLC

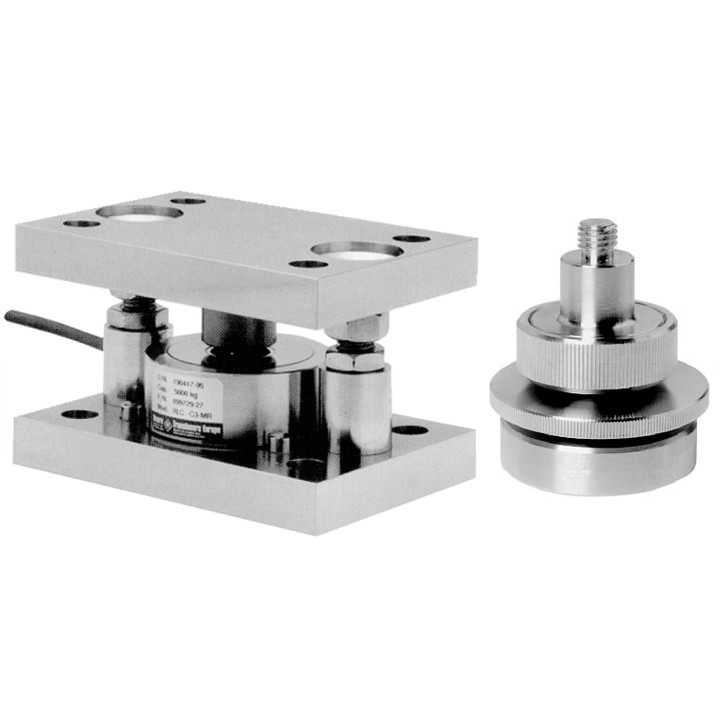

Load Cell RLC
Code: RLC
  • capacity range: 250 kg to 60 t
  • low profile, stainless steel construction
  • hermetically sealed, IP66 and IP68; IP69K is available for 250 kg, 5 t and 10 t versions
  • meets OIML R-60 and NTEP 6000d
  • outputs are matched to ensure easy and accurate parallel connection of multiple load cells
  • optional: ATEX certiied versions for use in potentially explosive atmospheres; multi-interval and multiple-range versions
Choose a product
Ask about product
+48 58 762 07 77
Description

The RLC is a low proile, high performance stainless steel ring torsion type load cell. The fully welded constuction and glass-to-metal cable- entry ensure that this product can be used successfully in harsh environments found in the food, chemical and allied process industries.

This product is suitable for small and medium platform scales, hoppers and process weighing.

This product meets the stringent Weights and Measures requirements throughout Europe and USA.

APPLICATIONS:

  • Platform scales
  • Belt scales
  • Silo hopper weighing

Specification
Rated load
250 kg
500 kg
1 t
2 t
3,5 t
5 t
10 t
28 t
60 t
Combined error
± 0,03% of rated output
± 0,02% of rated output
Overload, safe
150% of RL
Resistance
input: 1075 ± 100 Ω
input: 1110 ± 50 Ω
input: 1350 ± 100 Ω
output: 930 ± 0,5 Ω
output: 1025 ± 20 Ω
output: 1175 ± 0,5 Ω
output: 1025 ± 50 Ω
Sensor material
stainless steel
Protection class
IP 66
IP 68
IP 69K
Operating temperature
-30…+70°C
Files
Data sheet
Mounting assembly
Load Cells - Product Overview
