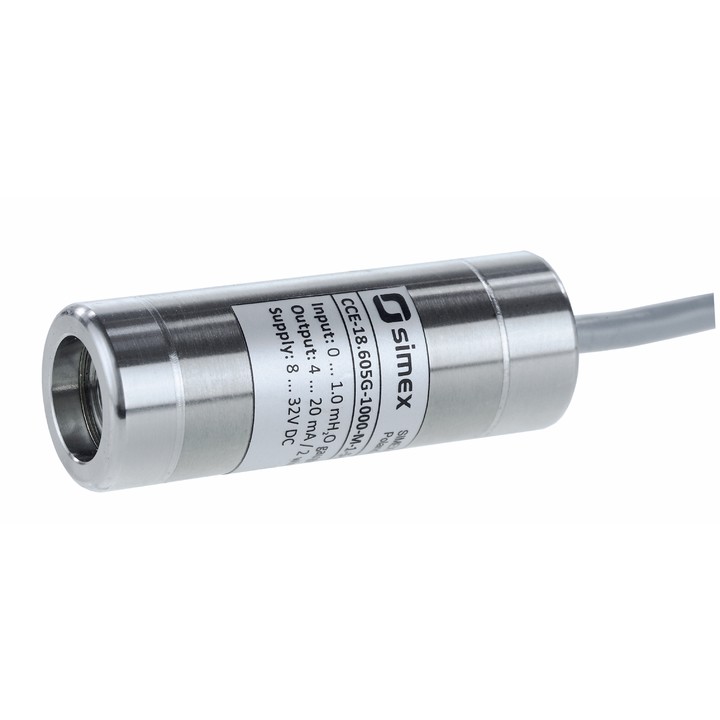

Pressure transmitter CCE-18.605G

Code: CCE-18.605G

stainless steel sensor
nominal pressure: 0...100 mbar up to 0...1 bar / 0...1 mH2O up to 0...10 mH2O
accuracy: 0.5% FSO
level measurement in water and fuel oil tanks
areas of application: utility vehicles / mobile hydraulics, general mechanical engineering, energy industry

Choose a product

Ask about product

+48 58 762 07 77

Specification

Measurement range	0...100 mbar up to 0...1 bar 0...1 mH2O up to 0...10 mH2O
Output type	4...20 mA 10…90% Vs, 3-wire ratiometric 0...10V, 3-wire
Process connection	G 1/4

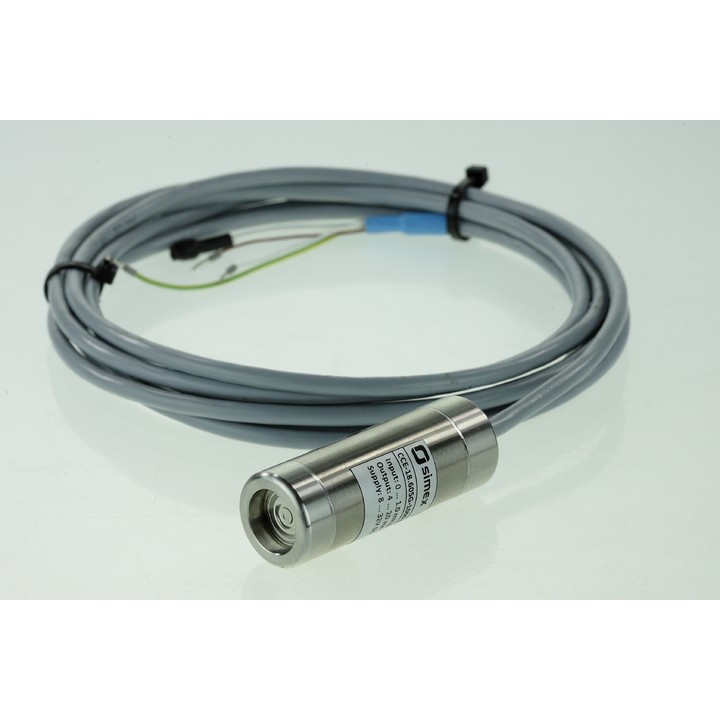

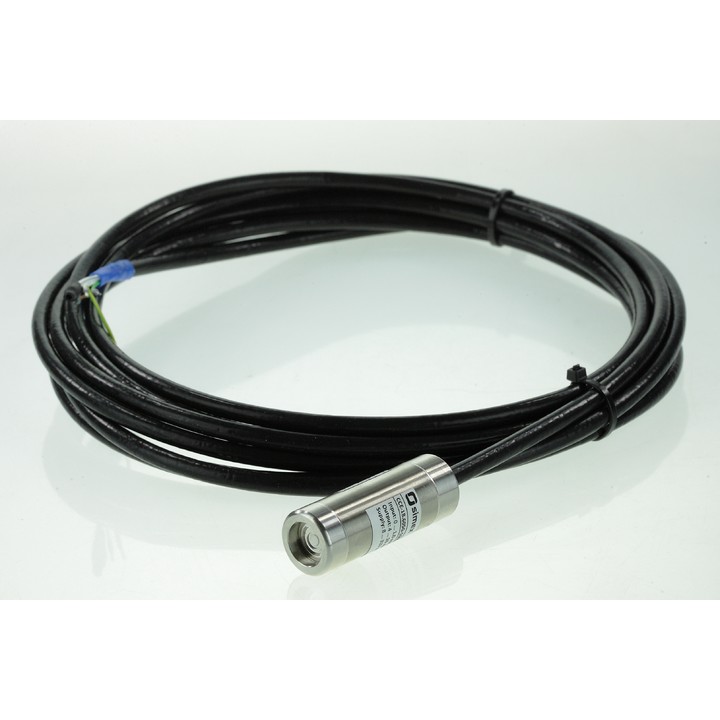

Electrical connection	cable outlet with PVC cable cable outlet with PUR cable
Diaphragm	stainless steel 316L
Power supply	2.7...5V DC (3-wire ratiometric) 8...32V DC 14...30V DC
Accuracy	±0,5% ±1%
Operating temperature	-10...+70°C
Medium temperature	-10...+70°C
Protection class	IP 68
Case material	stainless steel

Files

Data sheet	CCE-18.605G_eng.pdf
Manual	CCA_CCE_CPA_INSSXEN_v.1.00.000.pdf MA_CCA_CCE_CPA_INSSXEN_v.1.00.000.pdf
