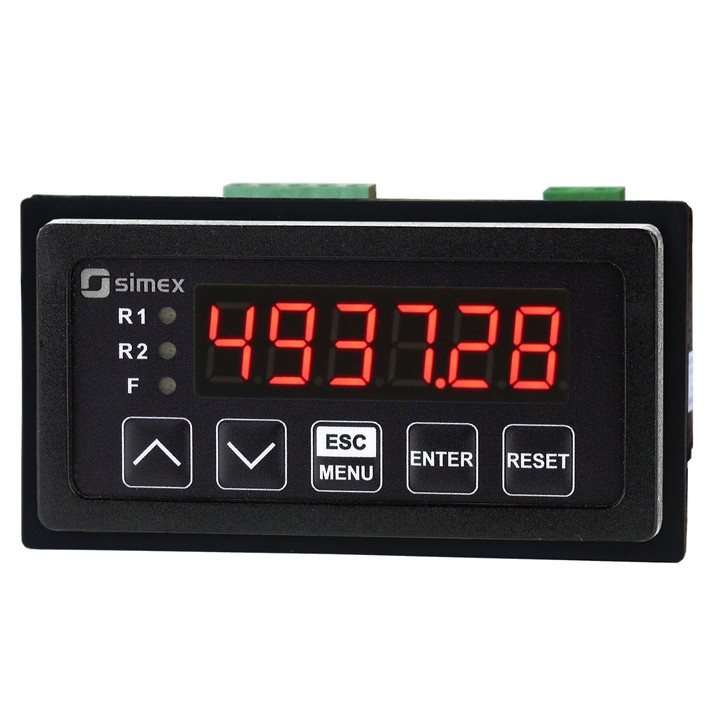

SLE-73

Code: SLE-73
  • economical pulse counter
  • 1 pulse counting input
  • 1 programmable function input
  • power supply output 24V DC
  • prescaler and digital filter
  • RS-485 / Modbus RTU
  • free configuration software S-Config
Description

The SLE-73 meters have been designed exclusively for applications where a progressive counting of impulses is required. They feature two entry ports: counting and with a programmable function that can be used for resetting the meter to zero or stopping / changing its direction of travel (as required). The built-in entry port divisor with programmable value from 1 to 9999, along with an adjustable decimal point, permits a simple transfer of incoming impulses into the units required. The counter can be configured with the local keyboard or free S-Config software via the RS-485 communication port.

Specification
Number of inputs
1
Input type
pulse: 1 x counting (down-up and up-down) PNP; 1 x programmable (PNP)
Input levels
low: 0...1V; high: 10...30V
Input frequency
electronic: 3 kHz; contact: max. 90 Hz (adjustable filter)
Measurement method
electrical, pulse
Tryb pracy
adding-subtracting
Power supply
16...35V AC, 19...50V DC
85..260V AC/DC
Display
LED, 6 x 9 mm, red
Communication Interface
RS-485 / Modbus RTU
Transmission parameters
1200...115200 bit/s, 8N1 / 8N2
Operating temperature
0...+50°C
-20…+50°C
Protection class
IP 20 (case and connection clips)
IP 65 (front)
optional integrated frame for panel cut-out sealing
Case material
NORYL-GFN2S E1
Mounting
panel
Case dimensions
72 x 36 x 97 mm
