MSR 145W2D

Code: MSR 145W2D
  • wireless data logger (WiFi) for monitoring temperature, humidity, fluid pressure, air pressure, acceleration, strain gauges and more
  • internal sensors and up to five external sensors
  • flexConnector for interchangeable FlexSensors
  • high-contrast, brilliant OLED colour display to show data and graphical charts, resolution 96 x 64 pixels
  • lithium-polymer battery, rechargeable via the USB connection
  • more than 1 million measured values storage capacity in the internal memory
  • free MSR PC software: MSR Setup, Reader, Viewer and Online software
Description

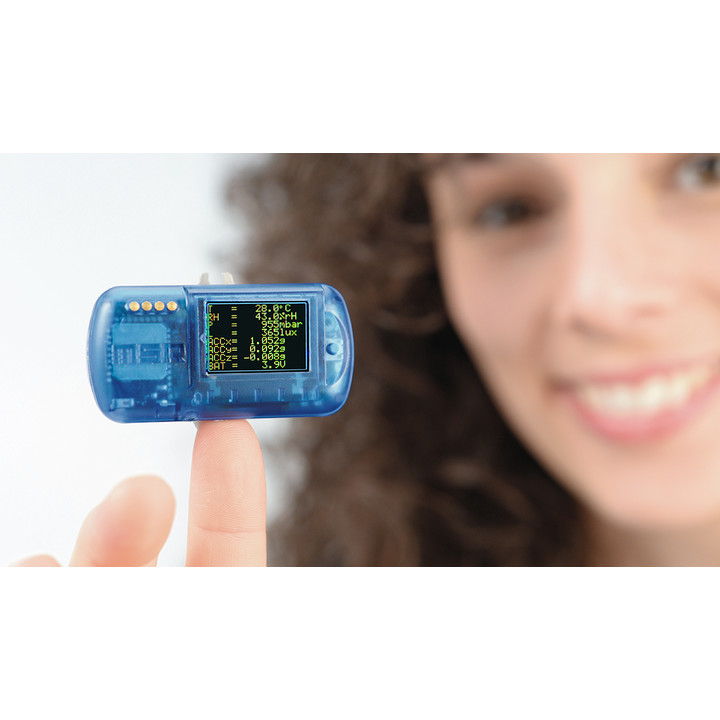

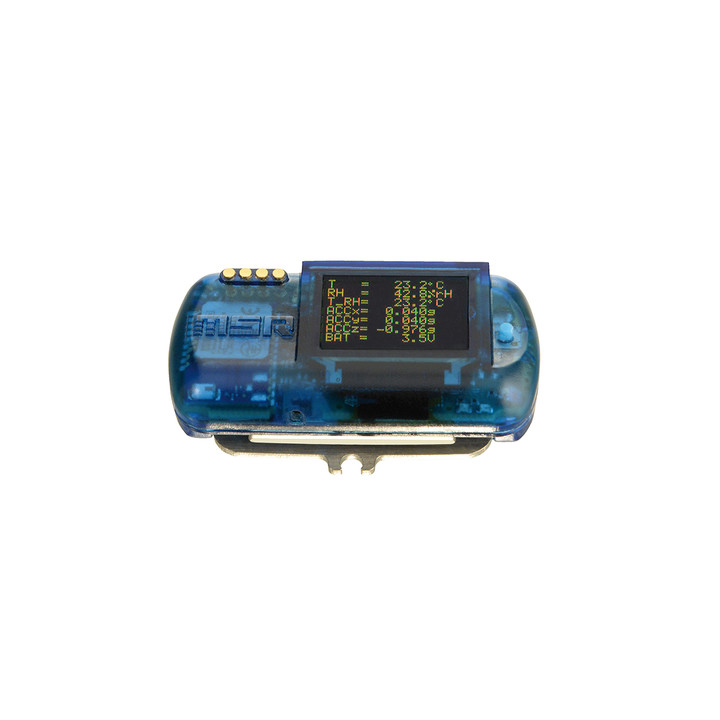

Wireless data logger MSR 145W2D (WiFi) for monitoring temperature, humidity, fluid pressure, air pressure, light, acceleration, strain gauges and more.
The MSR 145W2D stores over one million measured values. By integration with a WLAN/WiFi network, the data logger can be used to flexibly implement practically any kind of measurement applications.

The WiFi data logger is an all-round talent when it comes to sensor technology: You can choose various internal sensors as well as up to five external sensors or connections. The FlexConnector offers the highest possible flexibility. The intelligent plug-in connection facilitates customer-specific adaptation of the desired FlexSensors.

When it comes to observing environmental conditions over a longer period of time, in many cases it is quite sufficient to transmit the collected data via WiFi once or twice a day. When configuring the MSR145W2D, you can set the time windows during which the data logger should connect to the WiFi network. The WiFi connection is thus only activated when it is needed – which has a positive effect on the battery life of the data logger.

Specification
Power supply
LiPo battery, 900 mAh
LiPo battery, 230 mAh
Memory capacity
over 1 million measurement values
Probe parameters
temperature
humidity
air / liquid pressure
light
3-axis-acceleration
Communication Interface
USB
WiFi
Operating temperature
-20…+65°C
Protection class
IP 60
IP 67
Case material
polycarbonate
Case dimensions
35 x 17 x 57 mm
35 x 25 x 57 mm
