New universal controllers including a bargraph

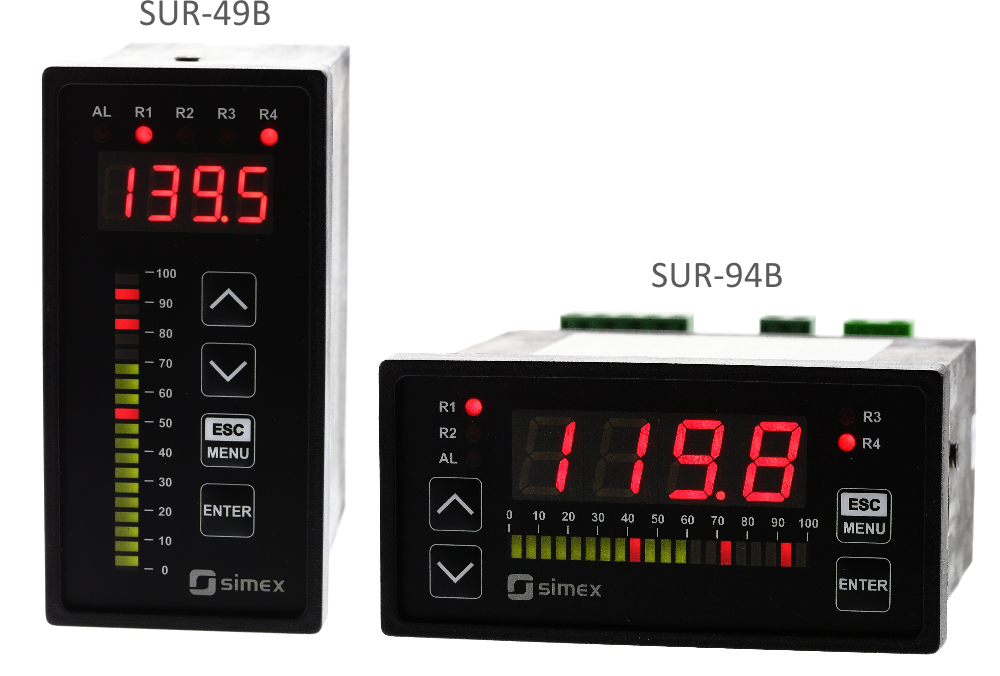

We are happy to announce the introduction of two new SUR meters equipped with a universal input and a bargraph. They have been designed for panel mounting, made in two housing types:
- vertical 48 x 96 mm: SUR-49B
- or horizontal 96 x 48 mm: SUR-94B
A freely scaled value of the input signal is presented in a numerical form - in a four-decade LED display, and in a graphic form - by means of a bargraph. Apart from the input status, the bargraph also provides information on the thresholds set for the control outputs.
The new meters, the same as all of our universal regulators, support all standard signals, i.e.:
- current: 0/4-20 mA
- voltage: 0/1...5V, 0/2...10V
- millivolt: 0...150 mV
- RTD: Pt100, Pt500, Pt1000
- thermocouple: TC K, S, J, T, N, R, B, E
and enable the regulation of quantities represented by these signals by means of the following outputs:
- binary: REL 5A / OC
- current: 0/4-20 mA
- voltage: 0/1...5V, 0/2...10V
