TRS-11a

Code: TRS-11a
  • designed for multipoint temperature and humidity measurement systems
  • collection, recording and sharing of information on temperature
  • temperature measurement range: -40...+85°C
  • RS-485 / Modbus RTU communication
  • possibility of connecting max. 127 modules on the RS-485 line in one network
  • network solutions
  • SimCorder software to support the system
Description

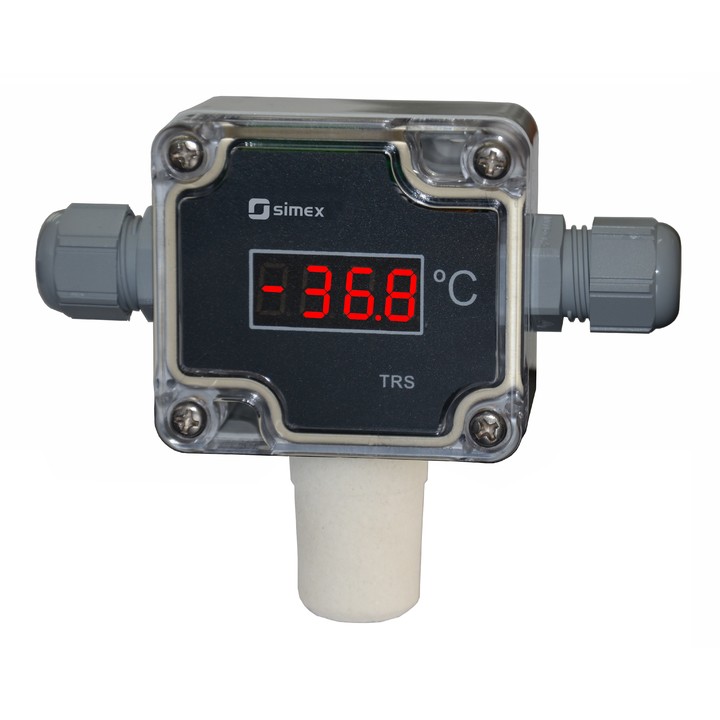

The TRS-11a is designed for multipoint temperature measurement within the range of -40°C up to +85°C. It is particularly designed to measure temperature in rooms where food products are manufactured and stored. A display located on the front panel enables the reading of current temperature and autonomous operation of the module (without a computer system). It is equipped with RS-485 / Modus RTU communication interface.

Specification
Number of inputs
1
Input type
integrated temperature probe (semiconductor integrated circuit)
Input range
temperature: -40...+85°C
Output type
no output
Power supply
9...12V DC
Display
LED, 4 x 9 mm, red
Communication Interface
RS-485 / Modbus RTU
Transmission parameters
9600 bit/s, 8N1
Operating temperature
-40...+85°C
Protection class
IP 30
IP 65
Case material
ABS
Case dimensions
64 x 58 x 35 mm
