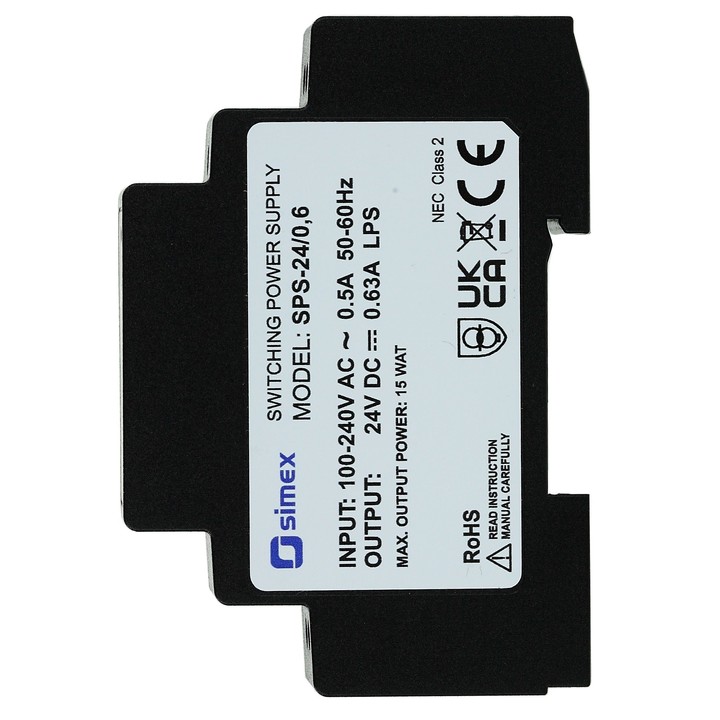

SPS-24/0,6

DIN rail power supply SPS-24/0,6; 15W
Code: SPS-24/0,6



  • industrial power supply, power 15 W
  • universal AC input / full range
  • output voltage 24V DC
  • rated current 0,63 A
  • can be installed on DIN rail TS-35
  • LED indicator for power on
  • plastic case
  • protections: short circuit / overload / over voltage
  • convection cooling



Availability:

10 pcs.

Shipping:

24h

Request for quotation
Ask about product
+48 58 762 07 77
Description

The SPS-24/0,6  is part of the DIN rail power supply series, which is designed for use in compact cabinets for home automations and the food and beverage industry. DIN rail power supplies offer double isolated input. This means that no Earth connection is required thus resulting in low leakage current. This product provides a universal input voltage range of 85 ÷ 264V AC, and a wide temperature range of -40°C to 70°C. The power supplies are certified to safety standard according to IEC/EN 60335-1, IEC 61558-1 and IEC 61558-2-16. NEC Class 2 and Limited Power Source (LPS) approvals are available for this product.

Specification
Input voltage
85...264V AC
Output voltage
24V DC
Rated current
0,63 A
Rated power
15 W
Inrush current
cold start
40 A/230V AC
Efficiency
87,5%
Operating temperature
-40...+70°C
Case dimensions
87,5 x 18 x 55 mm
Files
Data sheet
