Description

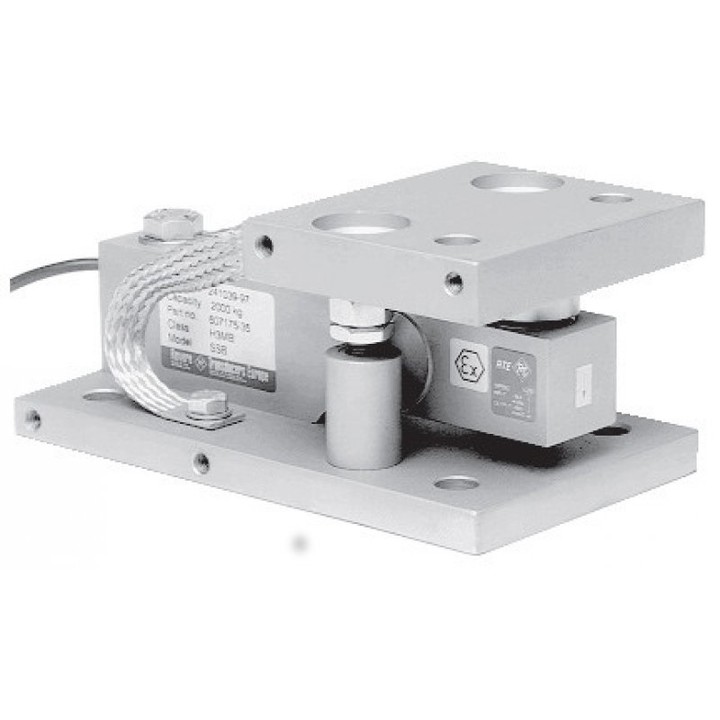

The Model SSB is a stainless steel single-ended shear beam type load cell. This robust product is suitable for a wide range of platform scales, pallet scales, overhead track scales, and process weighing applications.
The fully welded construction and water block cable entry ensure that this product can be used successfully in demanding environments found in the food, chemical, and allied process industries.
This product meets the stringent Weights and Measures requirements throughout Europe and the USA.
APPLICATIONS:
- Platform scales
- Belt scales
- Pallet scales
- Overhead track scales
- On-board weighing
- Silo hopper weighing
Specification
| Rated load |
500 kg
1000 kg
2000 kg
5000 kg
10000 kg
|
| Combined error |
± 0,02% of rated output
± 0,05 % of rated output
|
| Overload, safe |
150% of RL
|
| Resistance |
input: 350 ± 3,5 Ω
output: 352 ± 3 Ω
|
| Rated output |
2 mV/V
|
| Sensor material |
stainless steel
|
| Protection class |
IP 66
IP 68
|
| Operating temperature |
-40...+80°C
|
Files
| Data sheet | |

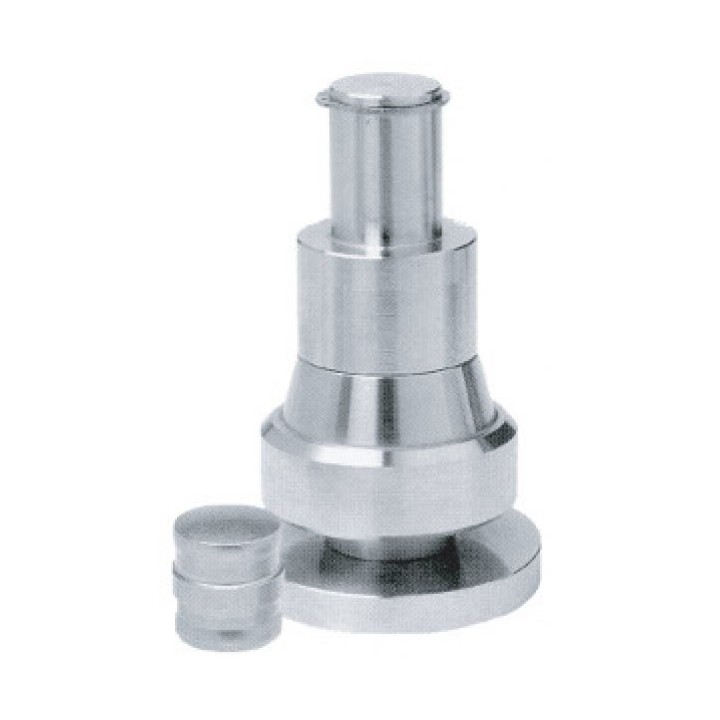

| Mounting assembly | |
