Description

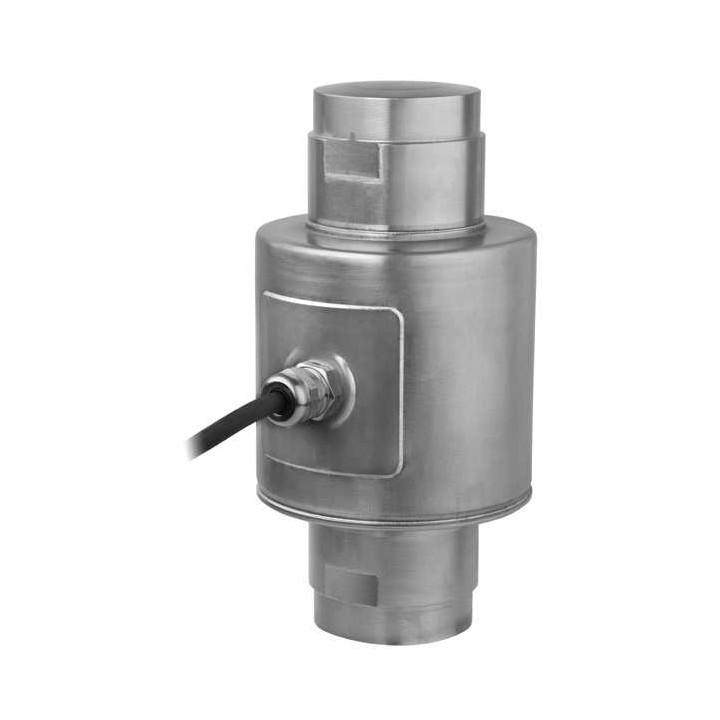

The Model ASC2 is a single column, stainless steel compression load cell fully compatible with original Model ASC.
This product is suitable for use in road and rail weighbridges and process weighing applications. The fully welded construction and built-in surge protection ensures that this product can be used successfully in many demanding environments.
This load cell meets the stringent Weights and Measures requirements throughout Europe and the Americas.
APPLICATIONS:
- Weighbridges
- Process weighing
Specification
| Rated load |
30 t
40 t
50 t
|
| Combined error |
± 0,03% of rated output
± 0,015% of rated output
± 0,02% of rated output
|
| Overload, safe |
150% of RL
|
| Resistance |
input: 1160 ± 60 Ω
output: 1011,5 ± 11,5 Ω
|
| Rated output |
2 mV/V
|
| Sensor material |
stainless steel
|
| Protection class |
IP 66
IP 68
IP 69K
|
| Operating temperature |
-30…+70°C
|
