ACB

Load Cell ACB
Code: ACB
  • capacities: 500 kg, 1t, 2t and 5t
  • low profile, stainless steel construction
  • hermetically sealed, IP66 and IP68
  • certified to OIML R60, 6000d
  • 1000 Ω bridge impedance
  • current calibration output (SC) ensures easy and accurate connection of multiple load cells
  • integral mounting step
  • optional: ATEX versions are available for use in potentially explosive atmospheres, caused by gas or dust
Choose a product
Ask about product
+48 58 762 07 77
Description

The Model ACB is a high performance stainless steel beam type load cell. An integral mounting step removes the need for spacer plates and ensures optimum “bolt down” conditions.

This product is suitable for small and medium platform scales, hybrid scales, pallet weighers, and process weighing.

The fully welded construction and the cable entry ensure that this product can be used successfully in demanding environments found in the food, chemical, and allied process industries.

APPLICATIONS:

  • Platform scales
  • Belt scales
  • Overhead track scales
  • Silo hopper weighing

Specification
Rated load
500 kg
1000 kg
2000 kg
5000 kg
Combined error
± 0,05 % of rated output
± 0,12% of rated output
± 0,025% of rated output
Overload, safe
150% of RL
Resistance
input: 1000 ± 50 Ω
output: 1000 ± 10 Ω
Rated output
2 mV/V
Sensor material
stainless steel
Protection class
IP 66
IP 68
Operating temperature
-40...+80°C
Files
Data sheet

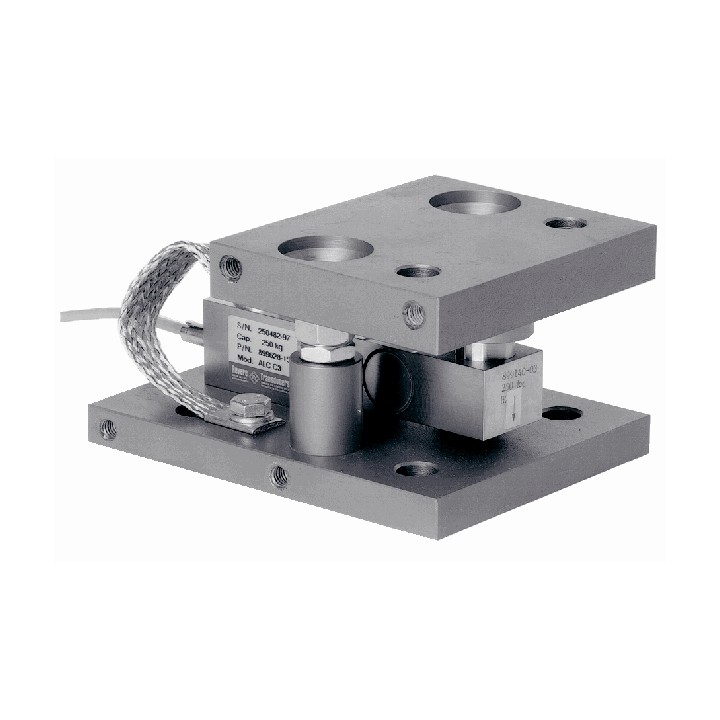

Mounting assembly
