9102

Beam Load Cell 9102
Code: 9102
  • capacities: 200...2500 lbs
  • low profile, stainless steel construction
  • hermetically sealed, IP66 and IP68
  • certified to OIML R-60, 5000d and NTEP class III, 5000 divisions
  • current calibration output (SC version) ensures easy and accurate parallel connection of multiple load cells
  • interchangeable with existing Model 5102
  • optional: ATEX and FM certiied versions for use in potentially explosive atmospheres
Choose a product
Ask about product
+48 58 762 07 77
Description

The Model 9102 is a stainless steel single-ended beam type load cell. This product is suitable for small and medium platform scales, overhead track scales and process weighing.

The fully welded construction and water block cable entry ensure that this product can be used successfully in demanding environments found in the food, chemical and allied process industries.

APPLICATIONS:

  • Platform scales
  • Belt scales
  • Silo/hopper weighing
  • Overhead track scales

Specification
Rated load
200 lbs
500 lbs
1K lbs
2,5K lbs
Combined error
± 0,02% of rated output
± 0,05 % of rated output
± 0,01% of rated output
Overload, safe
150% of RL
Resistance
input: 350 ± 3,5 Ω
output: 350 ± 3,5 Ω
Rated output
2 mV/V
Sensor material
stainless steel
Protection class
IP 66
IP 68
Operating temperature
-40...+80°C
Files
Data sheet

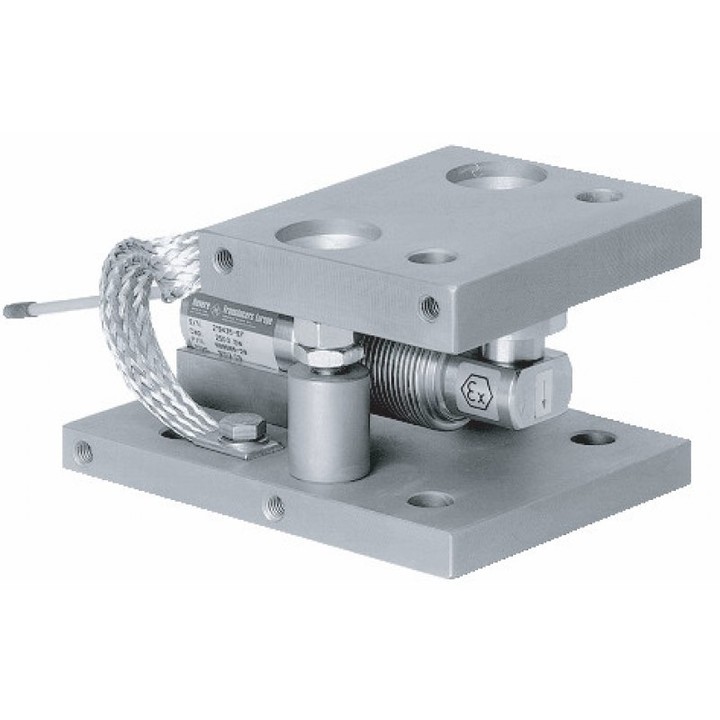

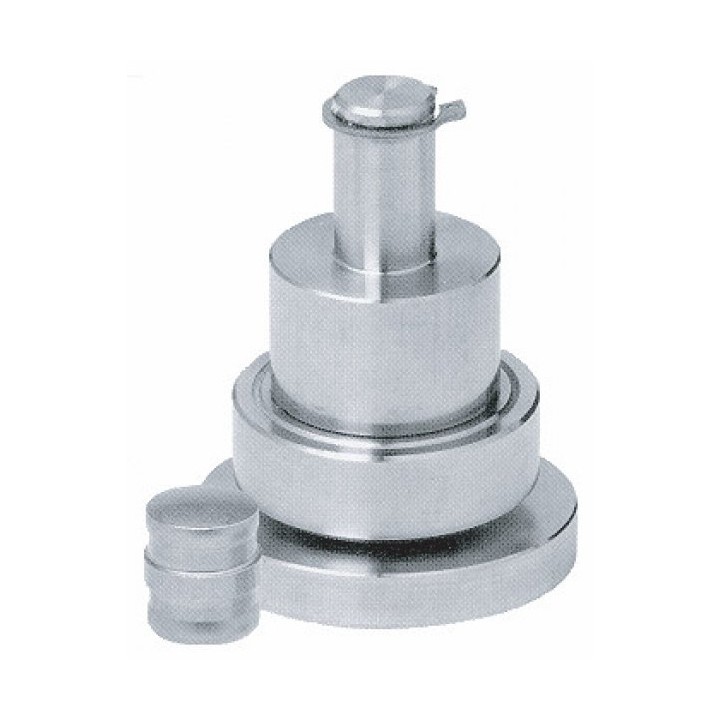

Mounting assembly
Load Cells - Product Overview
