65016-W

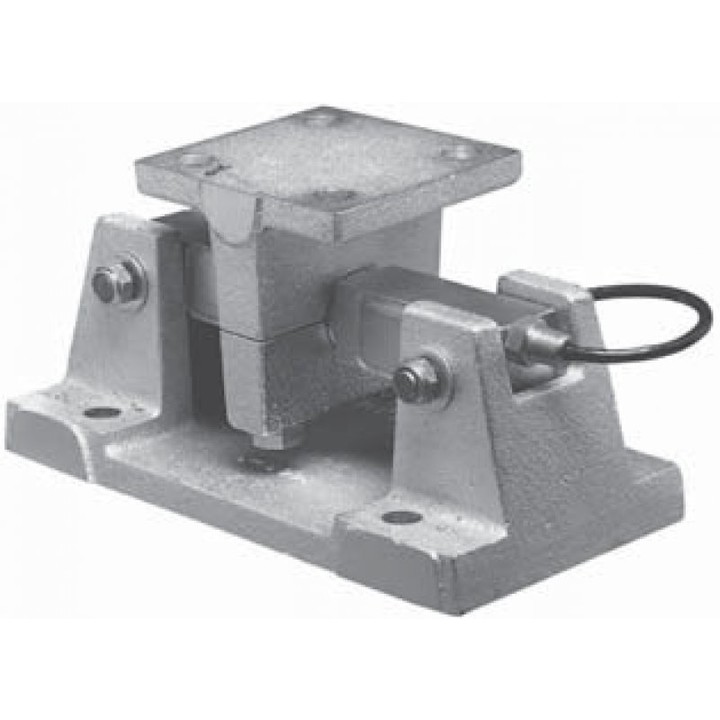

Load Cell 65016-W
Code: 65016-W
  • capacities of 1000 to 100,000 lbs
  • stainless steel, welded seal construction
  • insensitive to side loads and bending moments
  • high output - well suited to high deadload / low liveload applications
  • load cells have matched outputs for multi-cell systems
  • integral conduit adaptor
  • Sensorgage™ sealed to IP67 standards
  • Factory Mutual System Approved for Classes I, II, III; divisions 1 and 2; groups A through G. Also, non-incendive ratings (No barriers!)
  • optional: fully hermetically sealed version available
Choose a product
Ask about product
+48 58 762 07 77
Description

The Model 65016-W is designed to be center-mounted with double-linked loading. This design provides free movement in all horizontal directions, virtually eliminating binding or friction points. The double Shear Beam design gives an excellent performance for high capacity loading.

The Stainless steel construction and IP67 rating make this load cell ideal for any environmental installation.

APPLICATIONS:

  • Hostile environments: food and beverage processing; chemical and plastics processing; pharmaceutical and biomedical processing
  • Tank, bin, and silo weighing
  • Batching, blending and mixing systems
  • Level and inventory monitoring

Specification
Rated load
1K lbs
1,5K lbs
2,5K lbs
5K lbs
10K lbs
15K lbs
25K lbs
35K lbs
50K lbs
60K lbs
75K lbs
100K lbs
Combined error
± 0,03% of rated output
Overload, safe
150% of RL
Resistance
input: 686...714 Ω
output: 699...707 Ω
Rated output
3 mV/V
Sensor material
stainless steel
Protection class
IP 67
IP 68
Operating temperature
-18...+65°C
