Load Cell 615 / 616
Code: 61
  • capacities 50...1000 kg
  • nickel-plated alloy steel (615) or stainless steel (616) construction
  • protection: IP 66 (model 616); IP 67 (model 615)
  • for use in tension or compression
  • 6-wire (sense) circuit
  • output standardised to ±0.1%
Choose a product
Ask about product
+48 58 762 07 77
Description

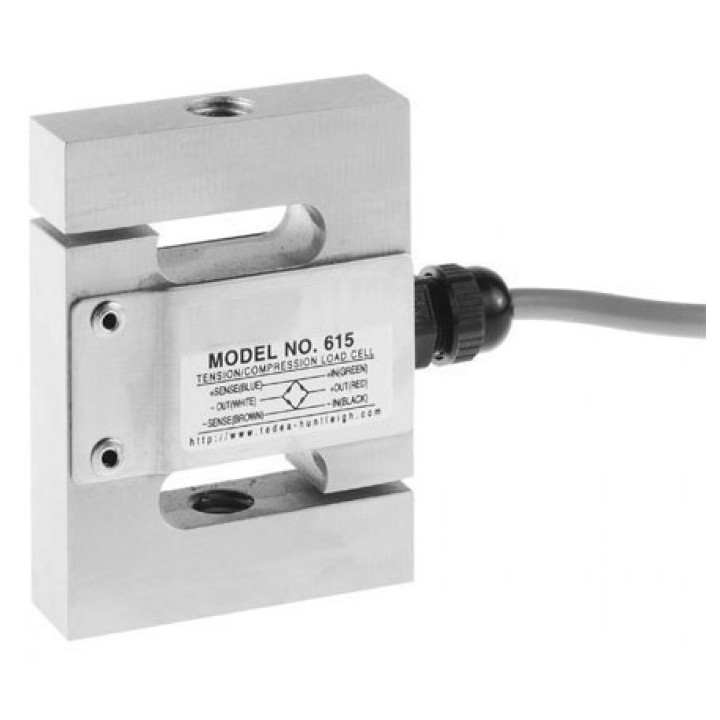

The Models 615 and 616 are tension compression load cells which share the same dimensions. Humidity-resistant coating and shielded cables enable these load cells to be used in harsh environments while maintaining their operating speciications.

The additional sense wires compensate for changes in lead resistance due to temperature change and/or cable extension. Ideally suited for lever conversions, hanging scales, force measurement and a wide range of other industrial applications.

The Model 616 is made from stainless steel and has bonded covers for additional protection (except 50 kg). The Model 615 is an alternative, lower cost version made from alloy steel with riveted covers.

APPLICATIONS:

  • Hopper (tank weighing)
  • Hybrid scales
  • Belt weighing
  • Lever arm conversions
  • Material testing machines
  • Vibration illing equipment
  • Dynamometers

Specification
Rated load
50 kg
100 kg
150 kg
200 kg
300 kg
500 kg
750 kg
1000 kg
Combined error
± 0,02...0,05% of rated output
Overload, safe
150% of RL
Resistance
input: 400 ± 20 Ω
output: 350 ± 3 Ω
Rated output
2 mV/V
Sensor material
stainless steel
nickel plated steel
Protection class
IP 66
IP 67
Operating temperature
-30…+70°C
Files
Data sheet
Load Cells - Product Overview
