Description
The Model 4158 is a double-ended shear beam load cell designed for high capacity silo weighing applications. This high accuracy load cell is designed to meet NTEP standards. When combined with suitable mounting arrangements, this load cell will provide a simple, accurate and reliable weighing system. Nickel plated and full environmental sealing assure long- term reliability.

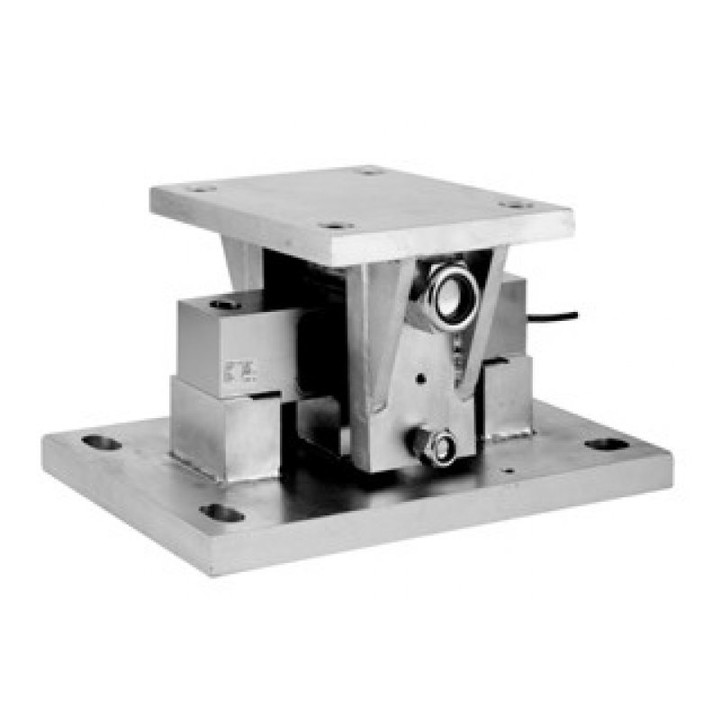

For hazardous environments, this load cell has a EEX ia IIC T6 approved option. When used in conjunction with Tedea-Huntleigh’s custom designed mount, the unit combines ease of installation with both side load and lift-off protection.
APPLICATIONS:
- Weigh bridges
- Tank and silo weighing
Specification
| Rated load |
10K lbs
20K lbs
25K lbs
40K lbs
50K lbs
60K lbs
75K lbs
|
| Combined error |
± 0,03...0,05% of rated output
|
| Overload, safe |
150% of RL
|
| Resistance |
input: 780 ± 20 Ω
output: 705 ± 5 Ω
|
| Rated output |
3 mV/V
|
| Sensor material |
nickel plated steel
|
| Protection class |
IP 67
|
| Operating temperature |
-30…+70°C
|
