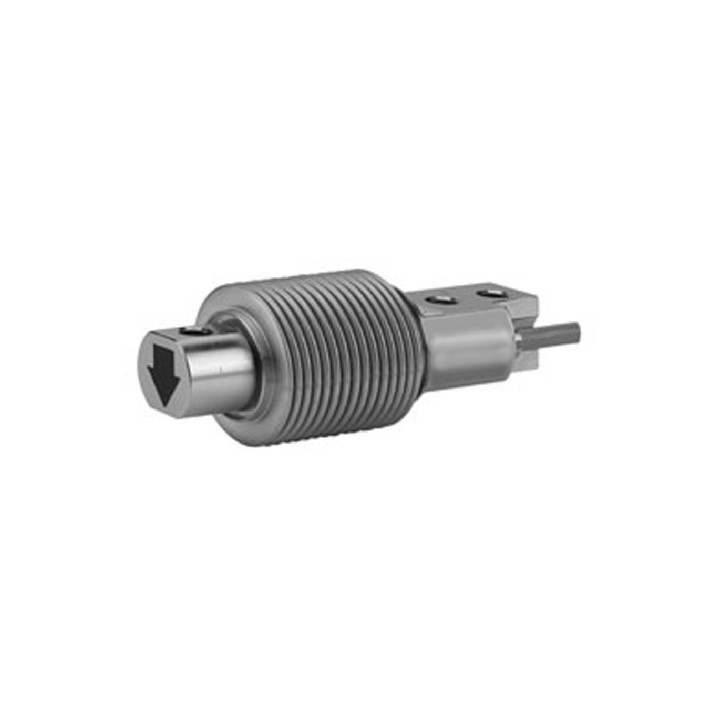

The Model 355 is a welded bending load cell manufactured in stainless steel. Hermetically sealed against moisture, the Model 355’s construction and polyurethane shielded cable enables the load cell to function in harsh environments while maintaining its operating speciications.
The low proile, high accuracy and sealing makes this load cell highly suitable for applications such as low profile platforms, weighing and packing machines, conversion of mechanical and a variety of other applications where sealed cells are required. For hazardous environments this load cell is available with EEx ia IIC T6 level of approval as an option.
The two additional sense wires feed back the voltage reaching the load cell. Complete compensation of change in the lead resistance, due to temperature change and/or cable extension, is achieved by feeding this voltage into the appropriate electronics.
Applications:
- low profile platforms
- loss-in-weight feeders
- marine and hybrid scales
- belt weighers
- food industry harsh environment
| Rated load |
5 kg
10 kg
20 kg
30 kg
50 kg
100 kg
200 kg
250 kg
500 kg
|
| Combined error |
± 0,015...0,03% of rated output
|
| Overload, safe |
150% of RL
|
| Resistance |
input: 380 ± 10 Ω
output: 355 ± 5 Ω
|
| Rated output |
2 mV/V
|
| Sensor material |
stainless steel
|
| Protection class |
IP 68
|
| Operating temperature |
-20...+70°C
|
| Data sheet | |

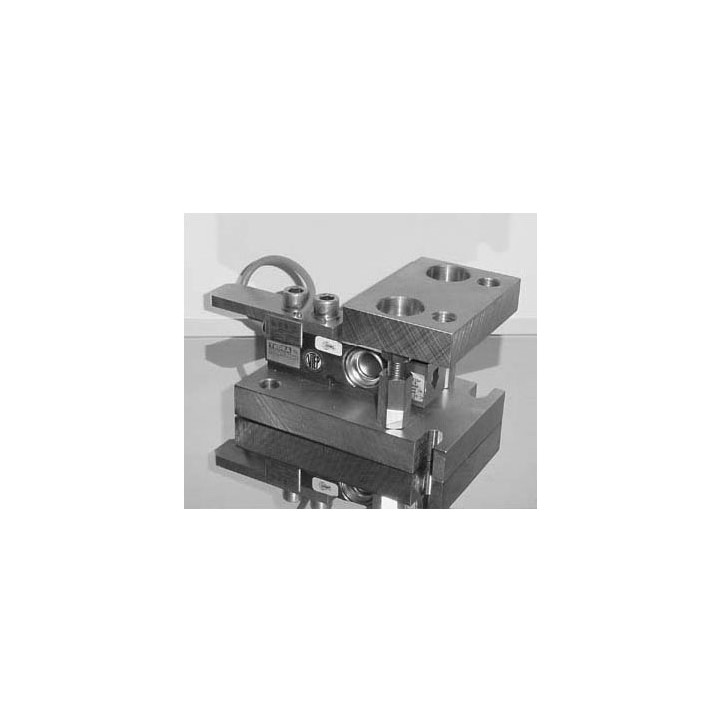

| Mounting assembly | |
