3410, 3411
.jpg)
.jpg)
Ask about product:
Product query has been sent.
Thank you. We will respond as soon as possible.

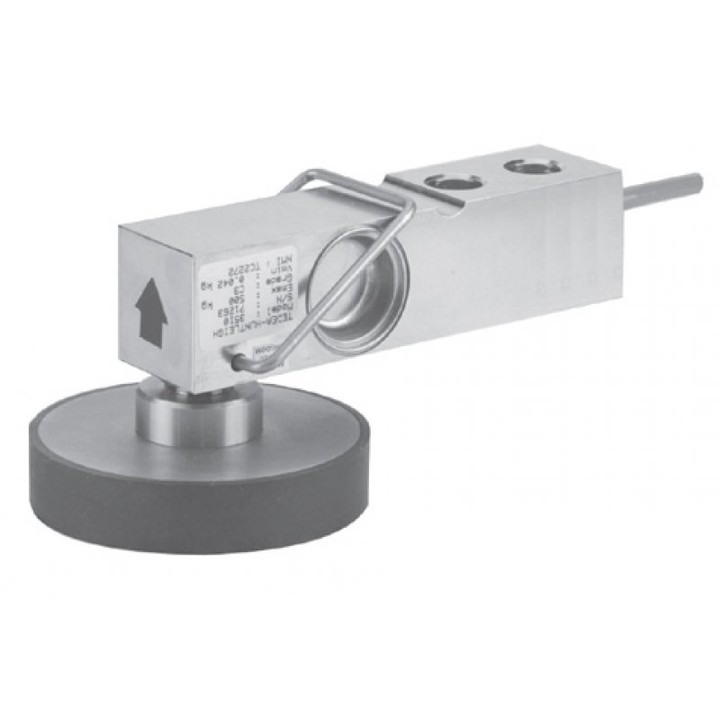

The Models 3410 / 3411 are a low profile shear beam load cells designed for high accuracy platform scales, pallet scales and process weighing applications. It has high immunity to shock or side loading and is available in 2 or 3 mV/V sensitivity.
Approved to OIML and NTEP standards. For hazardous environments this load cell is available with EEx ia IIC T6 level of European approval.
Nickel plating and full environmental sealing assures long-term reliability. A stainless steel option is available for the lb versions for use in harsh or corrosive environments. The two additional sense wires feed back the voltage reaching the load cell. Complete compensation of changes in lead resistance, due to temperature change and/or cable extension, is achieved by feeding this voltage into the appropriate electronics.
APPLICATIONS:
- Low proile platforms
- Pallet truck weighing
- Tank and silo weighing
| Rated load |
250 kg
500 kg
1000 kg
2000 kg
1K lbs
1,5K lbs
2,5K lbs
4K lbs
|
| Combined error |
± 0,02...0,05% of rated output
|
| Overload, safe |
150% of RL
|
| Resistance |
input: 385 ± 10 Ω
output: 351 ± 5 Ω
input: 4500...5500 Ω
output: 4400...5500 Ω
|
| Rated output |
2 mV/V
3 mV/V
|
| Protection class |
IP 67
|
| Sensor material |
stainless steel
nickel plated steel
|
| Operating temperature |
-20...+70°C
|
| Data sheet | |

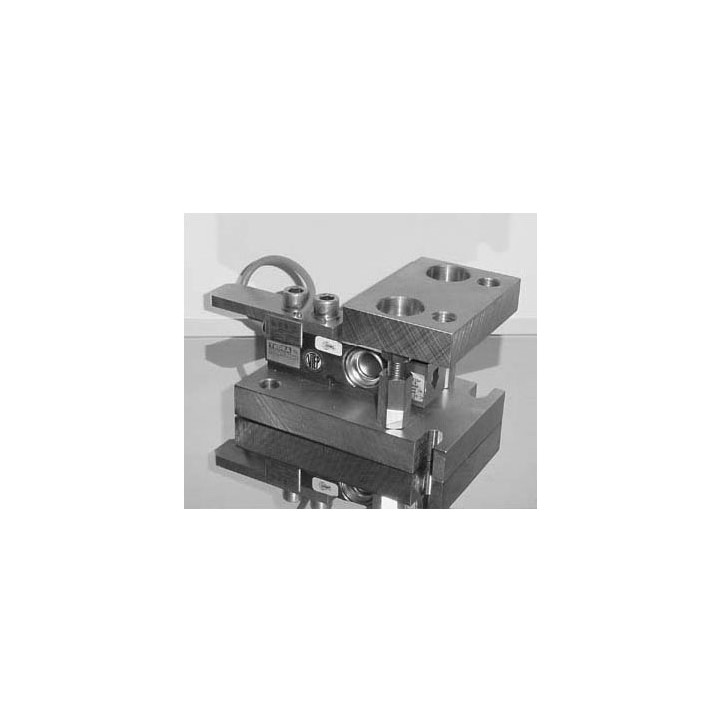

| Mounting assembly | |
