220

Load Cell model 220
Code: 220
  • capacities 5...50 t
  • stainless steel construction
  • OIML R60 and NTEP approved
  • IP68 protection
  • optional: EEx ia IIC T6 hazardous area approval, FM and IECEx approvals available
Choose a product
Ask about product
+48 58 762 07 77
Description

The Model 220 is a low proile bending ring load cell designed for high capacity weighing applications, including weighbridges, tanks, silos and high capacity platform scales as well as force measurement. Its small physical size, combined with high accuracy and low cost, makes this load cell ideally suited for modern low proile designs in both approved applications and process weighing.

This high accuracy load cell has factory Mutual approval and is OIML R60 approved to 6000 divisions.

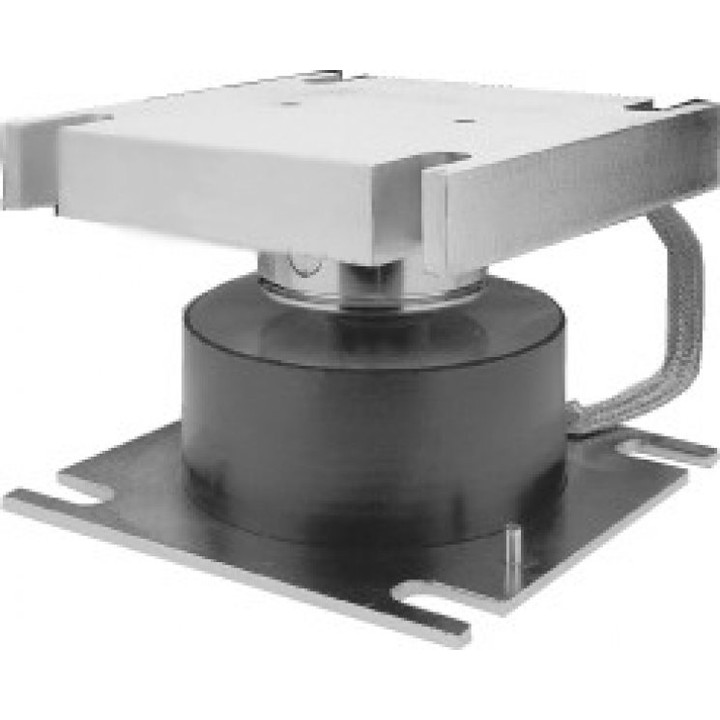

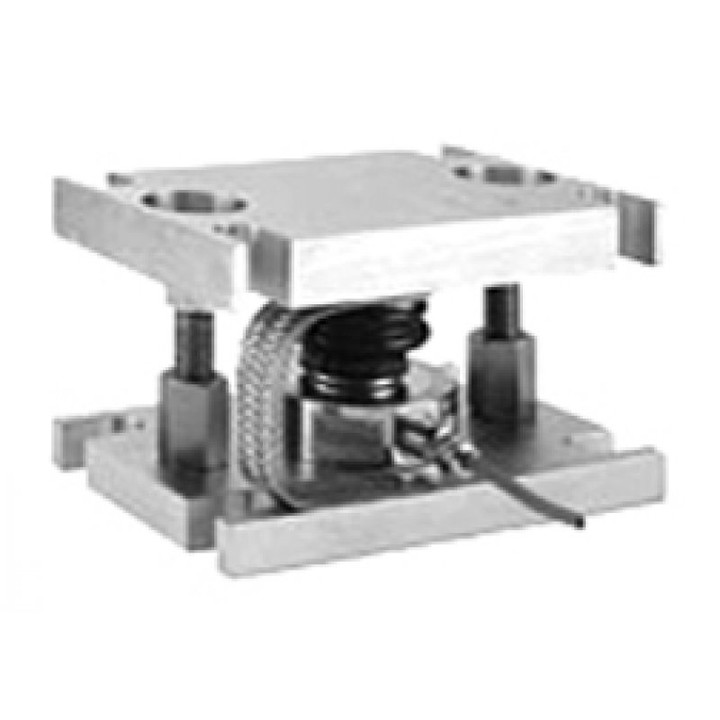

For hazardous environments, this load cell has an EEx ia IIC T6 approved option. When combined with Tedea-Huntleigh mounting accessories, this load cell will provide a simple, accurate and reliable weighing system.

APPLICATIONS:

  • Truck scales
  • Hopper for process weighing
  • Tank and silo weighing
  • Harsh environment

Specification
Rated load
5 t
10 t
20 t
30 t
50 t
Combined error
± 0,015...0,05% of rated output
Overload, safe
150% of RL
Resistance
input: 1065 ± 60 Ω
output: 1025 ± 20 Ω
Rated output
2 mV/V
Sensor material
stainless steel
Protection class
IP 68
Operating temperature
-30…+70°C
