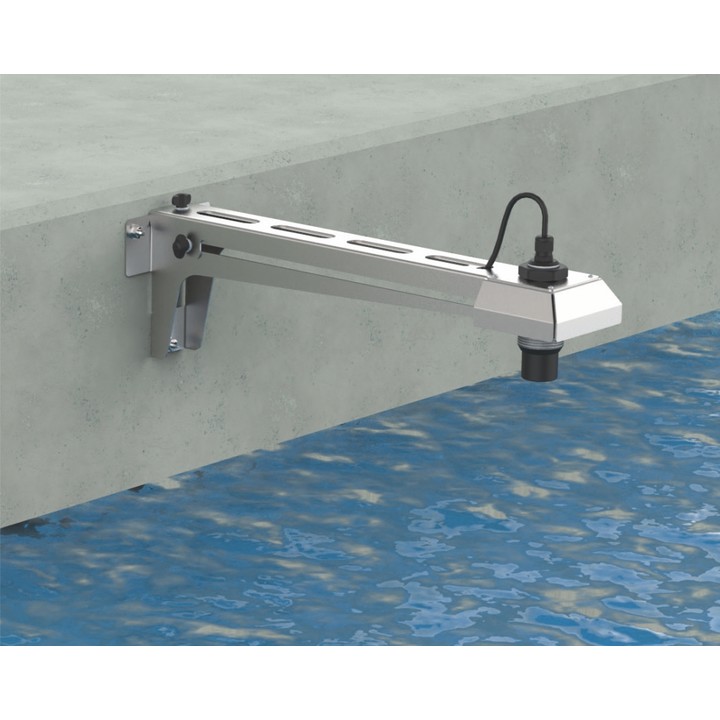

Non-contact radar level meters CPC-AR-54 with an antenna are suitable for continuous level measurement at medium and longer distances of liquid or pasty substances. They can be used both in various closed tanks, containers, in semi-open sumps, and in open space. Their use is suitable where their advantages are fully realized:
- non-contact measurement
- independence of measurement on temperature and atmospheric pressure above the surface
- possibility of measurement even in vacuum
- possibility of measurement even in aggressive vapors
- measurement is independent of medium parameters.
The CPC-AR-54 radar level meter operates on the FMCW (frequency modulated continuous wave) principle with a frequency of 25 GHz (K-Band).
The level meter is equipped with a compact covered funnel antenna. The antenna cover prevents dirt, vapors and gases from penetrating the antenna. The level meter is two-wire with a current output of 4...20 mA with HART® communication. Measuring range 0.3...8 m or 0.3...20 m.
| Measurement range |
0,3...8 m
0,3...20 m
|
| Output type |
4...20 mA
HART
|
| Electrical connection |
cable gland
|
| Probe diameter |
Ø55 mm
|
| Power supply |
18...34V DC
|
| Resolution |
0,1 mm
|
| Measuring frequency |
25 GHz
|
| Operating temperature |
-30…+70°C
|
| Protection class |
IP 68
|
| Case material |
polypropylene (PP)
|
