CPA-K-307

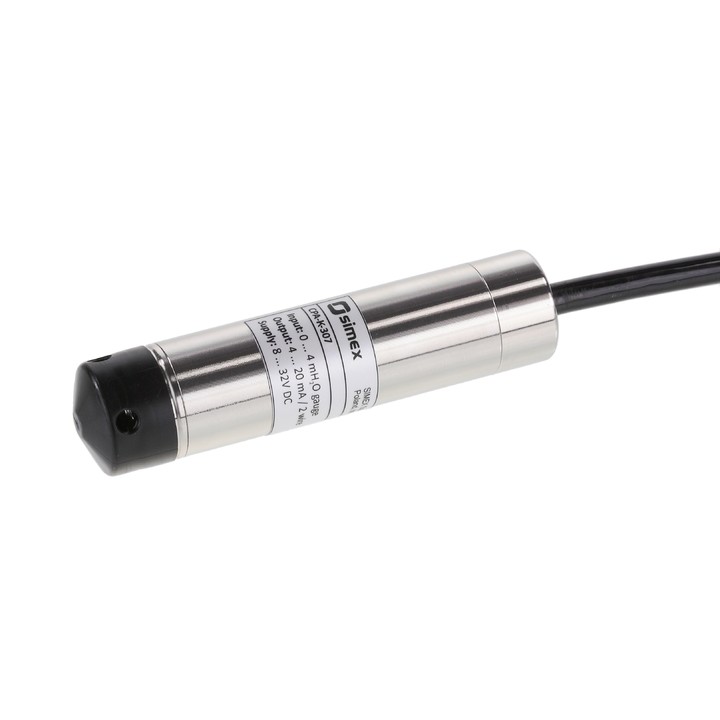

Submersible probe CPA-K-307
Code: CPA-K-307
  • submersible probe
  • ceramic sensor
  • stainless steel probe Ø27 mm
  • nominal pressure: 0...4 mH2O up to 0...250 mH2O
  • accuracy: 0.5% FSO
  • excellent linearity
  • areas of application: drinking water system, ground water monitoring, storm water systems, waste water treatment, water recycling, dumpsite, fuel storage, tank farm, biogas plants
Choose a product
Ask about product
+48 58 762 07 77
Description

The level transmitter CPA-K-307 is designed for continuous level measurement in water or waste water applications. Basic element is a flush mounted ceramic sensor.

Suitable for all fluids which are compatible with media wetted materials. Different cable and elastomer matierals can be offered according to the customer-specific operating conditions.

Specification
Measurement range
0...4 mH2O up to 0...250 mH2O
Output type
4...20 mA, 2-wire
0...10V, 3-wire
0...20 mA, 3-wire
Electrical connection
cable outlet with PVC cable
cable outlet with PUR cable
cable outlet with FEP cable
Probe diameter
Ø27 mm
Diaphragm
ceramics Al2O3 (96 %)
Power supply
8...32V DC
14...30V DC
10...28V DC
13…28V DC
Accuracy
±0,5%
Medium temperature
-20...+80°C
Protection class
IP 68
Case material
stainless steel
Case dimensions
Ø27 x 115 mm
