SFX-800
Code:
SFX-800
- electromagnetic flow meter
- 0.5% F.S measuring accuracy
- RS-485 Modbus communication, 4-20 mA output
- nominal diameter: DN10...DN1000
- measuring the flow of fluid in the forward and reverse directions
- unaffected by the temperature, pressure, density of the liquid
- no pressure loss
- readings that are unaffected by changes in density or viscosity
Ask about product:
Fill in the following form
Product query has been sent.
Product query has been sent.
Thank you. We will respond as soon as possible.
Description

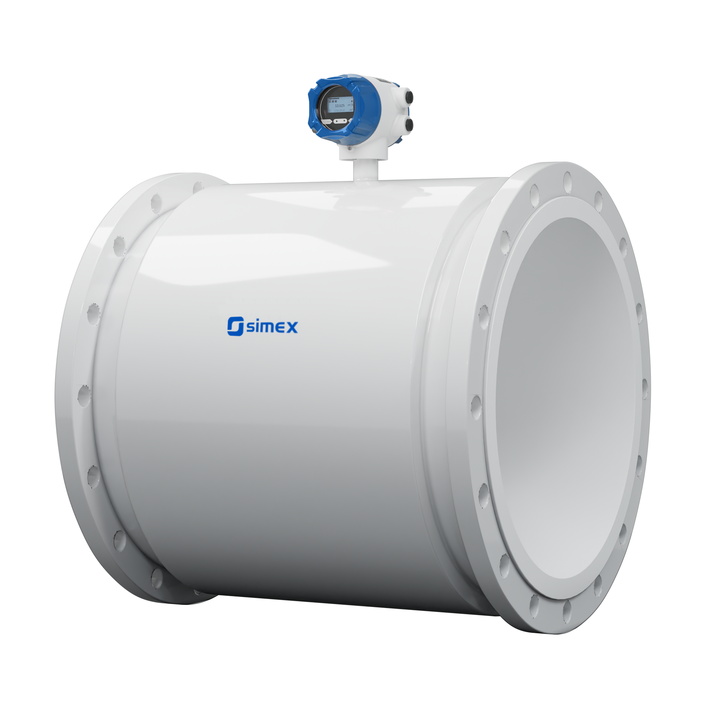

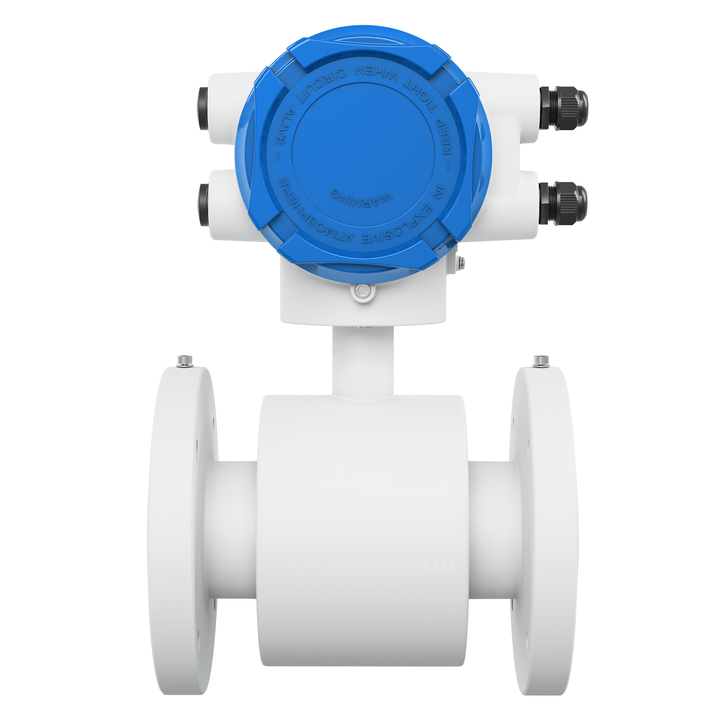

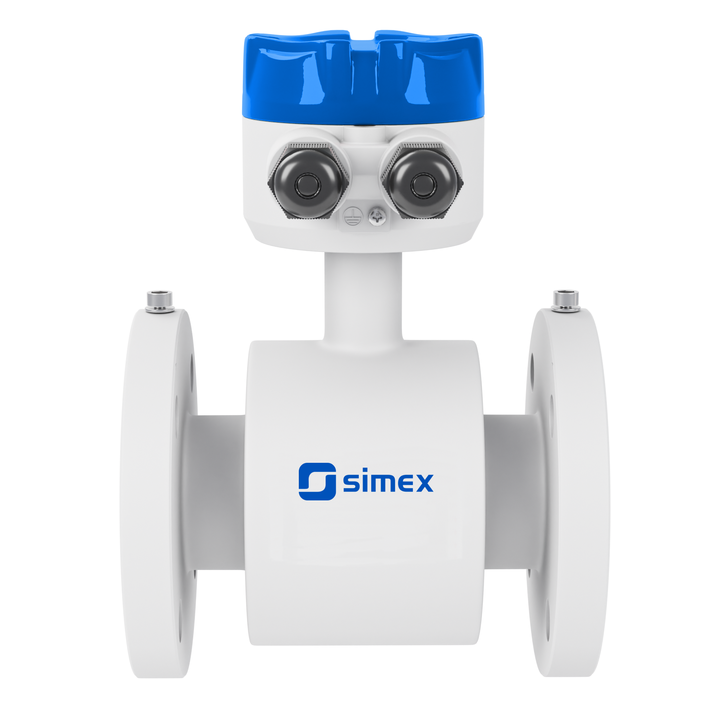

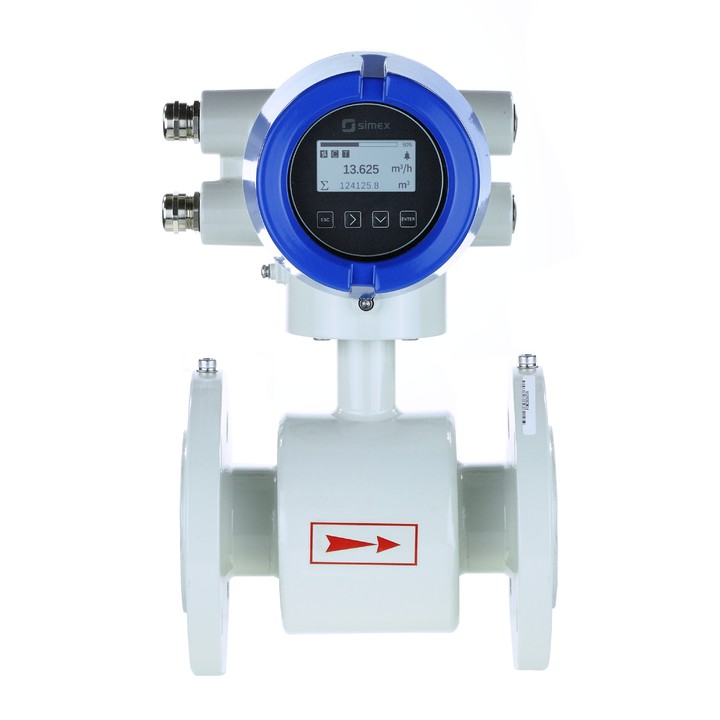

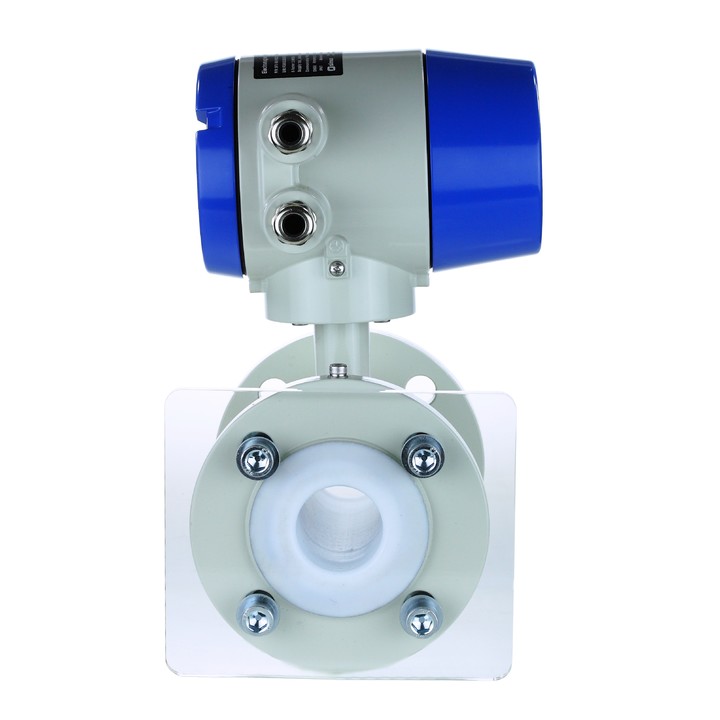

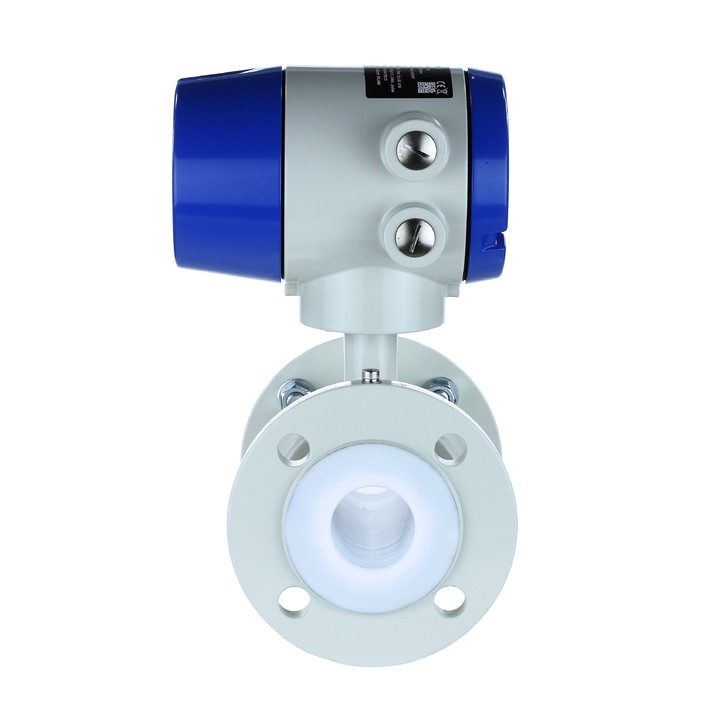

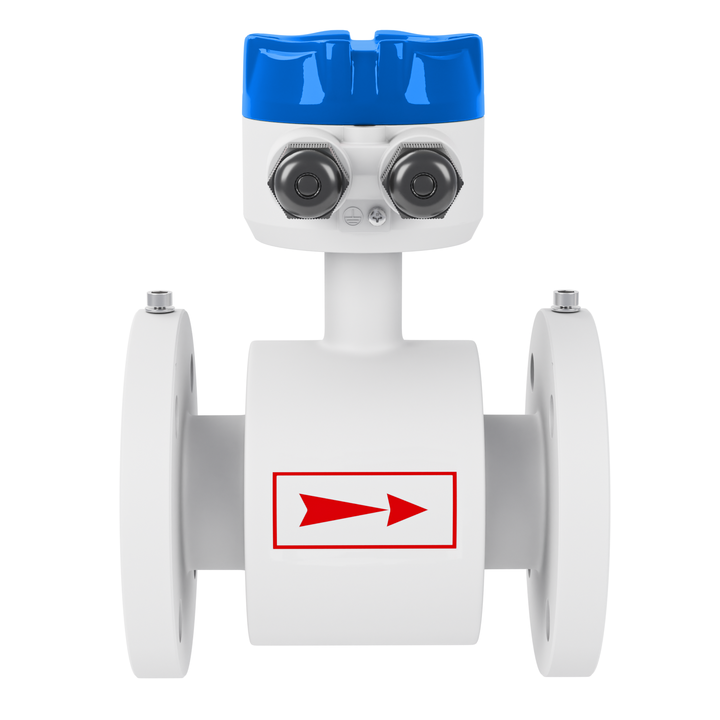

The electromagnetic flow meter SimFlux SFX-800 is designed based on the Faraday electromagnetic induction principle and are used to directly measure the flow rate of conductive liquids in closed pipelines. During on-site monitoring and display, standard current signals, pulse signals, and RS-485 digital signals can be output for recording, adjustment, and control, achieving automatic detection and control. Nominal diameters are from DN10 (3/8") up to DN1000 (40").
It can be widely used in industries such as tap water, chemical industry, coal, environmental protection, light textile, metallurgy, paper making, etc.
Specification
| Measurement range |
0,14...1,4 up to 1410...14100 m3/h
|
| Process connection |
flange
clamp
|
| Electrical connection |
cable gland
|
| Output type |
4...20 mA
pulse
relay
|
| Communication Interface |
RS-485 / Modbus RTU
|
| Power supply |
20...28V DC
100...240V AC
|
| Accuracy |
±0,5%
|
| Pressure |
16 bar max.
|
| Medium temperature |
-10...+70°C
-10...+60°C
|
| Case material |
aluminium
|
| Protection class |
IP 65
IP 66
IP 67
IP 68
|
