MSR 147WD

MSR 147WD Bluetooth Data Logger with plug-in Sensors
Code: MSR 147WD
  • wireless data logger (Bluetooth)
  • 5 connections for plug-in humidity & temperature sensors
  • internal air pressure and/or 3-axis accelerometer optionally available
  • over 1 million measured values
  • Bluetooth, USB, MSR Local Cloud, MSR SmartCloud
  • high-contrast, brilliant OLED colour display to show data and graphical charts, resolution 96 x 64 pixels
  • lithium-polymer battery, 230 mAh
  • free MSR PC software, MSR SmartCloud
Availability:

on order

Request for quotation
Ask about product
+48 58 762 07 77
Description

The MSR 147WD, which is equipped with Bluetooth Low Energy (BLE) and a memory that is capable of storing 1 million measured values, enables you to reliably record and wirelessly monitor physiological parameters such as skin temperature and moisture level over long periods of time. The mini data logger has 5 connections for plug-in humidity and temperature sensors.

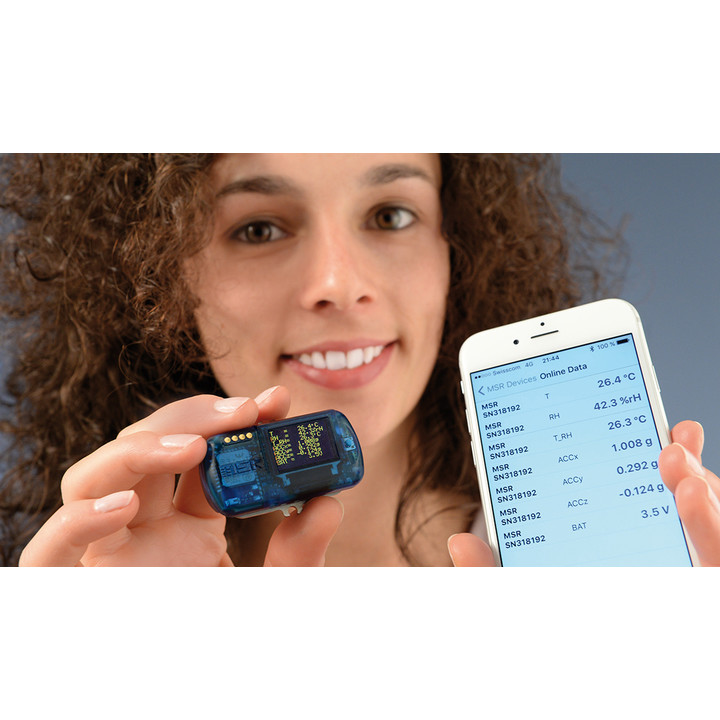

The sensors supplied by MSR Electronics GmbH can be inserted and removed individually. Due to the automatic configuration feature, the data logger instantly recognises when a sensor is inserted. The calibration data is stored in the relevant sensor. You can retrieve the measured values online at any time by means of BLE or USB. The smartphone app «MSR DataLogger» allows you to start, stop and read out data recordings and to transfer it to the MSR SmartCloud.

Specification
Power supply
LiPo battery, 230 mAh
Memory capacity
over 1 million measurement values
Probe parameters
temperature
humidity
air / liquid pressure
3-axis-acceleration
Communication Interface
USB
Bluetooth
Operating temperature
-20…+65°C
Protection class
IP 60
IP 67
Case material
polycarbonate
Case dimensions
35 x 17 x 57 mm
