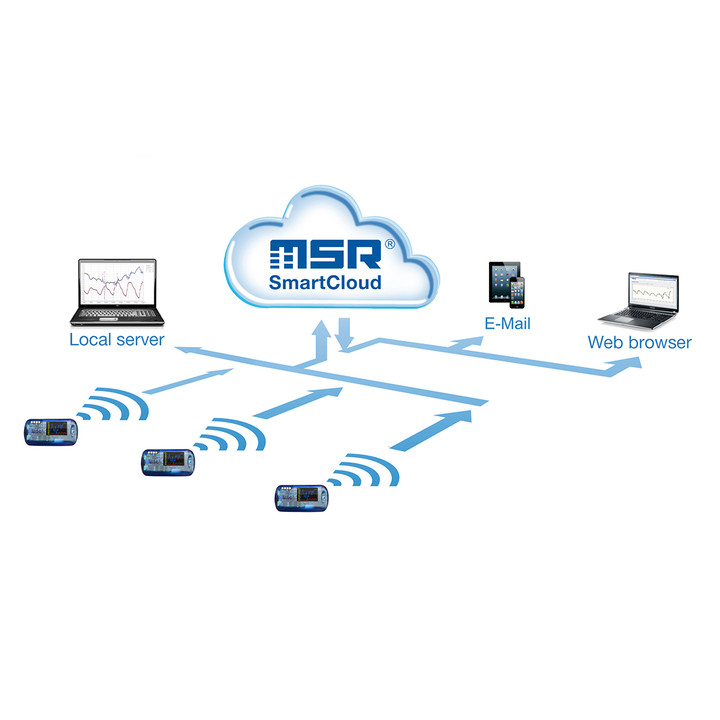

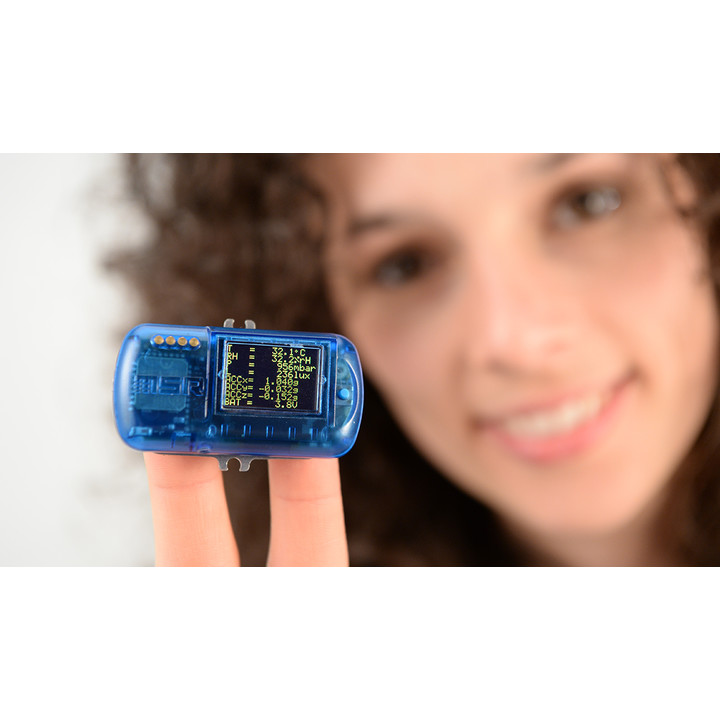

The easy to use MSR 147W2D wireless data logger is ideal for remote monitoring of temperature and humidity. This can be of great benefit when testing the material and construction properties of functional clothing, for example. The temperature and humidity sensors, which are available in different cable lengths, can be easily attached to the body of a test person and the physiological parameters determined, such as skin temperature and moisture level can be conveniently accessed online via WiFi/WLAN.

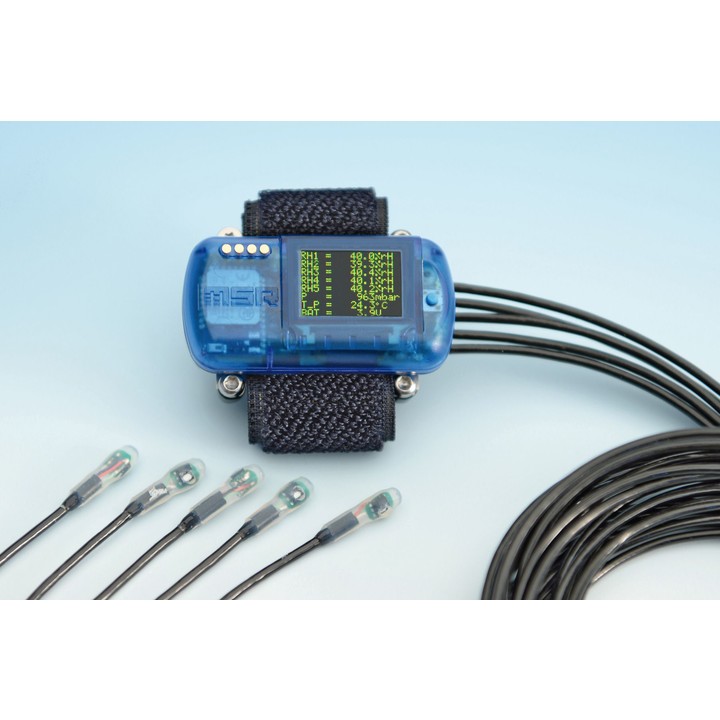

Five connections (IP 60) for plug-in, external, pre-calibrated humidity and temperature sensors in cable lengths of 0.20 m, 1.00 m or 1.60 m and a cable diameter of 2.2 mm (black cable, up to +75 °C). A cable diameter of 1.2 mm (white cable, up to +200°C) is available on request. Sensors measuring air pressure and 3-axis acceleration (static) are available as internal sensors.
| Power supply |
LiPo battery, 230 mAh
|
| Memory capacity |
over 1 million measurement values
|
| Probe parameters |
temperature
humidity
air / liquid pressure
3-axis-acceleration
|
| Communication Interface |
USB
WiFi
|
| Operating temperature |
-20…+65°C
|
| Protection class |
IP 60
IP 67
|
| Case material |
polycarbonate
|
| Case dimensions |
35 x 17 x 57 mm
|
| Data sheet | |
| Manual |
