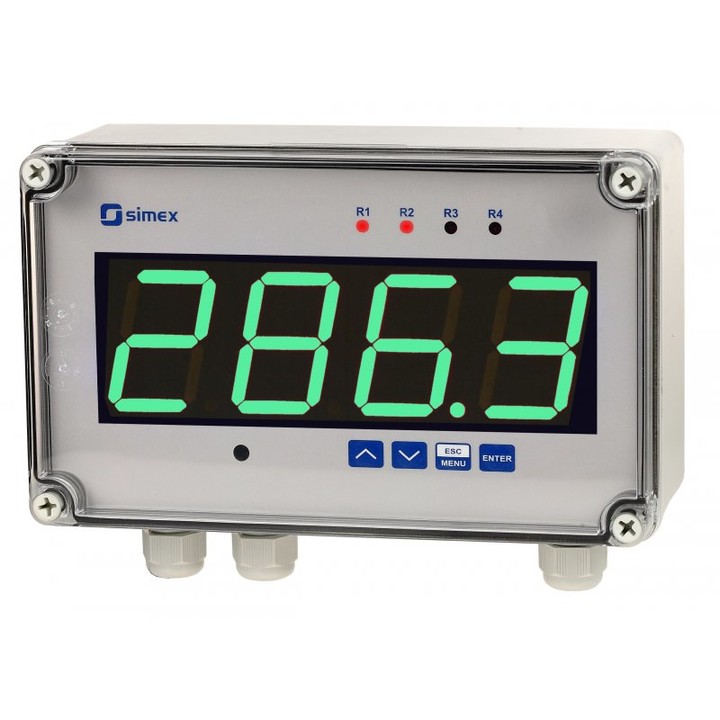

SWS-457

Code: SWS-457
  • indicator in tight wall-mounted case IP 67
  • multicolour or ultra bright red, green and blue, 57 mm LED display
  • power supply output: 24V DC
  • RS-485 / Modbus RTU
  • MASTER / SLAVE
  • adjustment of colours and brightness for the display
  • password protected
  • free configuration software S-Config
Description

The SWS-457 is a simple digital panel indicator intended for displaying any numerical values and characters defined by user (in SLAVE mode only) sent from the master device over the RS-485 serial interface link. The displayed value may be collected from other device (in MASTER mode). As a main advantage, this device is equipped with a large, 57 mm high display offering ultra bright red, green and blue as well as multicolour LED's. User can change display colour in 9 steps range (through light green, yellow and through green) and display brightness in 8 steps range. Thanks to the tight housing with high (IP 67) protection degree, this device is particularly suitable for operations in harsh environments. The 24V DC / 100 mA output is designed to supply measuring transducers, and the RS-485 port enables data transmission in production process monitoring systems. The meter may be configured with no need to open the case, by using the remote controller or with free S-Config software via the RS-485 communication port.

Specification
Input type
no input
Output type
no output
Power supply
16...35V AC, 19...50V DC
85..260V AC/DC
Display
LED, 4 x 57 mm, multicolour
LED, 4 x 57 mm, ultra bright (red, green, blue)
Communication Interface
RS-485 / Modbus RTU
Transmission parameters
1200...115200 bit/s, 8N1 / 8N2
Operating temperature
0...+50°C
-20…+50°C
Protection class
IP 67
Case material
ABS
polycarbonate
Mounting
wall
Case dimensions
230 x 140 x 96,5 mm
